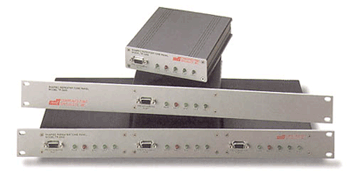

TP-32OO SHARED REPEATER TONE PANEL
The TP-3200 is the complete tone and control interface between the repeater receiver and transmitter. Microprocessor controlled for excellent frequency accuracy and stability.TP-3200 DSP Algorithms are incorporated into the software for enhanced decode sensitivity and talk-off rejection.
The TP-3200 also functions as a desktop CTCSS, DCS and DTMF decoder with its RS-232 port and advanced, comprehensive tone logging features for shop use. Programming is accomplished through its RS-232 port to a basic terminal or any PC with communications software.

Programming Features

  • Repeater CW ID

  • Programmable CW ID per subscriber

  • CW ID Interval per subscriber

  • CW ID Interval (System)

  • Anti-Kerchunck Timer

  • Stuck Mic Activity Timer

  • DCS Input Polarity

  • DCS Output Polarity

  • COR with Polarity Select

  • Programming Mode Access Code is programmable

  • Hog Timer, Hog Idle & Hog Monitor Timers

  • Programmable Courtesy Tone per subscriber

  • Programmable Reserve Tone

  • Time & Hit Counters Record the time of ALL CTCSS & DCS

STANDARD FEATURES

  • 51 CTCSS Tones
  • 106 DCS Codes
  • Supports 157 Repeater Subscribers
  • Signaling Formats: CTCSS,DCS
  • On Line Computer Help
  • Guaranteed Remote Reset
  • Air Time Loading & Analysis Graphs
  • COS Input Polarity Selectable
  • Non Volatile Memory retains programming even if power loss occurs
  • Static & Lighting Protection built-in
  • EMI Filtering for complete immunity to RF.
  • Ultra Low Current Drain 100ma Nominal @ 12 vdc,50ma with LED's disabled
  • Rear Panel Adjustments
  • Will not False on Adjacent
  • Tones, even those with Reverse Burst
  • Pre-Paid Air Time Feature
  • & DTMF
  • Busy Channel Lockout prevents "Barge-in's"
  • Stuck Mic identification
  • Five LED's Display Status
  • Time-out Warning Tones
  • Carrier Access Mode
  • Pre-wired DB9 Radio interface connector with 6' flying leads for easy hook-up.
  • Size: TP:3200RM 19" wide x 6" deep x 1.7" high
    TP:3200D 5.4" wide x 5.8" deep x 1.4" high

ALL TONES & CODES LISTED BELOW ARE INCLUDED IN THE TP-3200

51 CTCSS  Tones

106 DCS Codes

DTMF Tones
  63.0 94.8  136.5 177.3 218.1   017 053 125 172 251 315 411 462 565 712 0 *
  67.0 97.4  141.3 179.9 225.7   023 054 131 174 252 325 412 464 606 723 1 #
  69.4 100.0 146.2 183.5 229.1   025 065 132 205 255 331 413 465 612 731 2 A
  71.9 103.5 151.4 186.2 233.6   026 071 134 212 261 332 423 466 624 732 3 B
  74.4 107.2 156.7 189.9 241.8   031 072 143 223 263 343 431 503 627 734 4 C
  77.0 110.9 159.8 192.8 250.3   032 073 145 225 265 346 432 506 631 743 5 D
  79.7 114.8 162.2 196.6 254.1   036 074 152 226 266 351 445 516 632 754 6
  82.5 118.8 165.5 199.5   043 114 155 243 271 356 446 523 654 7
  85.4 123.0 167.9 203.5   047 115 156 244 274 364 452 526 662 8
  88.5 127.3 171.3 206.5   050 116 162 245 306 365 454 532 664 9
  91.5 131.8 173.8 210.7   051 122 165 246 311 371 455 546 703
TP-3200RM-A    Single Mount Version with one TP-3200
TP-3200RM-B   Triple Rack Mount Version with one TP-3200
TP-3200D         Table Top Version
