WISCO International (RF Connectors

RFA-4005 is supplied with one RFA-4005-020 crimping tool frame and two die sets, the RFA-4005-01 and the RFA-4005-02. All contained in a durable, padded, self-storage case.
RFA-4005-100 has one RFA-4005-20 crimp tool and one RFA-4005-01 die. Packaged in a blue, durable, padded storage case.
RFA-4005-200 includes one RFA-4005-20 crimp tool and one RFA-4005-02 die. Packaged in a blue, durable, padded storage case.
RFA-4005-300 contains 1 crimping tool frame plus the RFA-4000-02 die set packaged in a cardboard box. (not shown)
RFA-4005-400 contains 1 crimping tool frame plus the RFA-4000-01 die set packaged in a cardboard box. (not shown)
RFA-4006, the Deluxe Kit, is supplied with two crimping tool frames and the same two unique die sets found in the RFA-4005.

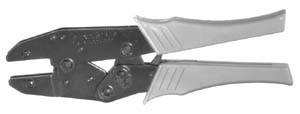

Crimp Handle - RFA-4005-20

The RFA-4005-20 crimp handle is precision manufactured of high-carbon, heat-treated, stamped steel and designed for smooth and rapid die closure. A simple pressure adjustment resets the scissors rachet mechanism to compensate for different crimp dies and crimp forces. When the correct die is used, the full cycle rachet will not release until a clean and tight crimp is achieved. Should a mismatch occur, the disengagement lever quickly releases the rachet mechanism.

Standard Die Sets - RFA-4005-01 & RFA-4005-02

All dies are precision diecast, not pressed, powdered metal. Change crimp dies with ease, using either a Phillips or standard screwdriver.

The RFA-4005-01 die set is used to crimp RG58/U, RG59/U, RG142/U, RG8X, Proflex and various video cables. Cavity dimensions: .052", .068", .100", .213" & .255".
The .052" cavity is unique and used to crimp the center pins of the RFU-600-1 or AMP's 2266-001.

The RFA-4005-02 die set is used to crimp RG8/U, RG213/U, RG214/U, and Belden 9913 cables. Cavity dimensions: .100", .128" & .429". The .128" cavity crimps the center pin on Belden 9913 cable.
This is the only die set with a .128" cavity for 9913 pins.
