Description Type No
Cable Ordering Information

Standard Cable

 LDF5-50A

7/8" Standard Cable, Standard Jacket



Fire Retardant Cables

7/8" Fire Retardant Jacket (CATVR)

 LDF5RN-50A

Low VSWR and Specialized Cables

7/8" Low VSWR, specify operating band.

 LDF4P-50A-(**)

** Insert suffix number from "Low VSWR

7/8" Foam Dielectric,
LDF Series - 50-ohm

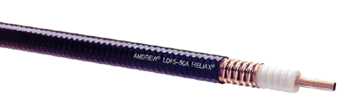

LDF5-50A

LDF5-50A

Characteristics

Electrical



Mechanical



Impedance, ohms

 50 ± 1

Outer Conductor

 Copper.

Maximum Frequency, GHz

 5.0

Inner Conductor

 Copper

Velocity, percent

 89

Diameter over Jacket, in (mm)

 1.09 (28)

Peak Power Rating, kW

 91

Diameter Copper Outer Conductor, in (mm)

 0.98 (24.9)

dc Resistance, ohms/1000 ft (1000 m)
   Inner
   Outer
0.32 (1.05)
0.36(1.18)

Diameter Inner Conductor, in (mm)

 0.355 (9.0)

dc Breakdown, volts

 6000 Nominal Inside Transverse Dimensions, cm 2.11

Jacket Spark, volts RMS

 8000

Minimum Bending Radius, in (mm)

 10 (250)

Capacitance, pF/ft (m)

 22.8 (75.0)

Number of Bends, minimum (typical)

 15 (50)

Inductance, µH/ft (m)

 0.057 (0.187)

Bending Moment, lb-ft (N•m)

 12(16.3)


Cable Weight, lb/ft (kg/m)

 0.33 (0.49)


Tensile Strength, lb (kg)

 325 (147)


Flat Plate Crush Strength, lb/in (kg/mm)

 80 (1.4)
Connectors
L5PDF-RPC L5PDM-RPC L5PDM-RPC
7-16 DIN Female
L5PDF-RPC		 7-16 DIN Male
L5PDM-RPC		 L5PDM-RPC
L5PNF-RPC L45R L45F
N Female
L5PNF-RPC		 7/8" EIA Flange
L45R		 F Flange Male
L45F
Interface

Description

Type
Number

Inner Contact
Attach

Outer
Contact
Attach

Plating
Code

Max. Length
in (mm)

Max. Dia.
 in (mm)

N Male

OnePiece

L5PNM-RPC

 Captivated Self-Flare SG 2.9 (74) 1.46 (37.2)

N Male

RingFlare

L5PNM-RC

Captivated

 Self-Flare SG 3.0 (76) 1.35 (34.3)

N Female

OnePiece

L5PNF-RPC

Captivated

 Self-Flare SG 2.7 (69) 1.46 (37.2)
N Female

RingFlare

L5PNF-RC

 Captivated Self-Flare SG 2.9 (74) 1.35 (34.3)
7/16 DIN Male OnePiece

L5PDM-RPC

 Captivated

Self-Flare

 SS 2.7 (69) 1.46 (37.2)
7/16 DIN Male

RingFlare

L5PPDM-RC

 Captivated

Self-Flare

 SS 3.1 (79) 1.34 (34.0)
7/16 DIN Female

OnePiece

L5PDF-RPC

 Captivated

Self-Flare

 SS 2.33 (59.1) 1.46 (37.2)
7/16 DIN Female

RingFlare

 L5PDF-RC Captivated

Ring- Flare

 SS 2.9 (74) 1.36 (34.5)
7/16 DIN Female Panel Mount L5PDF-PM Self-Tapping Self-Flare SS 2.7 (69) 1.35 (34.3)
7/16 DIN Female

Bulkhead

 L5PDF-BH Self-Tapping Self-Flare SS 2.7 (69) 1.9 (48.3)
7-16 DIN
Male

Right  Angle

 L5PDR Self-Tapping

Self-Flare

 SS 3.3/2.5 (85/64) 1.4 (35.6)
7/8 EIA Flange

-

 L45R Self-Tapping

Self-Flare

 BB 3.3 (84) 2.25 (57)
7/8 EIA Flange Right  Angle 124800-1 Self-Tapping Self-Flare BB 3.9/1.3 (99/33) 2.25 (57)
F Flange Male - L45F Self-Tapping Self-Flare BB 1.8 (46) 2.25 (57)
F Flange Female - 48041 Self-Tapping Self-Flare BB 1.8 (46) 2.25 (57)
Splice -

L45Z

Self-Tapping

 Self-Flare BB 3.3 (84) 1.5 (38)


Accessories
Description Type No.

Standard Hangers Kit of 10. Recommended maximum spacing is 3-ft (1 m).

 42396A-5

Hardware Kit of 10. 3/8" bolts, lockwashers, nuts
3/4" (19mm) long
1" (25mm) long


31769-5
31769-1

Snap-In Hangers Kit of 10. For prepunched 3/4" (19mm) holes on tower member or adapters, Recommended maximum spacing is 3-ft.

 206706A-2

Click-On Hangers Kit of 10. Recommended maximum spacing is 3-ft.

 L5CLICK

Kwik-Clamps Kit of 10.



Support/Hoisting Grip. Use at 200-ft (60m) intervals.



Grip with one clamp
Support clamp kit of 10

L5SGRIP
L5SGRIP-51K

Standard Hoisting Grip

19256B

Grounding and Surge Protection
Description Type No.
SureGround Grounding Kit with standard weatherproofing
Factory attached one-hole lug, 600 mm (24") lead
Factory attached two-hole lug, 600 mm  (24") lead
Field attached one-hole lug, 1500 mm (59") lead 		SGL5-06B1
SGL5-06B2
SGL5-15B4
SureGround Plus Grounding Kit with weatherproofing boot
Factory attached one-hole lug, 600 mm (24") lead
Factory attached two-hole lug, 600 mm  (24") lead
Field attached one-hole lug, 1500 mm (59") lead 		SGPL5-06B1
SGPL5-06B2
SGPL5-15B4
Arrestor Plus Integrated T-Series Arrestors
Bulkhead N Female
Bulkhead 7-16 DIN Female
APTL5-BNF-(*)
APTL5-BDF-(*)
WeatherShield™ Connector Protection Housing
LDF5 To LDF4
LDF6 To FSJ4		 WS-L5L4
WS-L5F4

Cold Shrink Weatherproofing Kit
7/8" Coax to 7/8" Coax N Connectors
1 5/8" Coax to 7/8" Coax N Connectors
7/8" Coax to 1/4" Coax
7/8" Coax to 3/8" or 1/2" Coax
7/8" Coax to Antenna Type N or DIN Interface
7/8" to APTL5 Arrestors

 241474-5
241475-3
241475-12
241475-9
241548-5
241574-5
Connector/Splice Weatherproofing Kit 221213

Entry Systems

 4" Boots 5" Boots

Standard Cable Entry Boots
One Hole:
Three Hole:
Four Hole
204679A-2
204679A-18
204679A-15
48939A-1
-
48939A-2

Tools
EASIAX® Plus Automated Cable Prep Tool:
EASIAX®   Cutting Tool
Cable Flaring Tool
7/8" Connector Torque Wrench
DIN Connector Coupling Torque Wrench
N Connector Coupling Torque Wrench
CPTL5A
222951
224368
244378
244377
244379
