Dipole Array & Power Dividers

Don�t let the price of our YDA Dipole antenna mislead you. This is a serious antenna with high class features, such as full gold anodization, fully welded elements, and nickel plated brass �N� connector. Our two and four bay dipole antenna array provides unmatched flexibility for both radiation pattern and frequency adjustment.

Dipole Arrays will give you complete control over the frequency and power balance for your installation and may be mounted in configurations to create customized broadside, Omnidirectional, or end fire patterns. Each model includes mounting kits for each dipole and a power divider for each system, and are FedEx/UPS shippable.

Custom pattern information is not provided for these arrays. They should therefore be installed by experienced installation technicians only

TECHNICAL DATA

VSWR:	<1.5:1
Max Power:	300 watts
Impedance:	50 ohms
Termination Type:	N Female and SO239 upon request
Lightning Protection:	DC Ground
Vertical Beam at 1/2 Power:	3 dB - 39 degrees 6 dB - 24 degrees 9 dB - 15 degrees
Mast Size Needed:	VHF 3 dB - 8 ft.
Mast Size Needed:	UHF 6 dB - 18 ft. 3 dB - 4 ft. 6 dB - 8 ft.
Element Material:	3/8" diameter solid 6061-T6 aluminum rod.
Wind Survival:	100 M.P.H.
Boom Material:	Heat treated 6061-T6 aluminum tube.
Hardware:	Stainless steel U-Bolt included.

Dipole Arrays Models

DIPOLE ARRAYS 2 BAYS

Model	Frequency	Center Freq	Gain	Omni Gain	Offset Gain	Dipole Bays	Dipole Spacing
YDA1502	150 - 174 MHz	Tunable	N/A	3 dB	6 dB	2	N/A
YDA4502	450 - 470 MHz	Tunable	N/A	3 dB	6 dB	2	N/A

SINGLE OR REPLACEMENT DIPOLES

Model	Frequency	Center Freq	Gain	Omni Gain	Offset Gain	Dipole Bays	Dipole Spacing
YDA***1	N/A	User Defined	N/A	Unity	N/A	1	N/A

DIPOLE ARRAYS 4 BAYS

Model	Frequency	Center Freq	Gain	Omni Gain	Offset Gain	Dipole Bays	Dipole Spacing
YDA1364	136 - 150 MHz	Tunable	N/A	6 dB	9 dB	4	N/A
YDA1504	150 - 174 MHz	Tunable	N/A	6 dB	9 dB	4	N/A

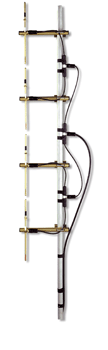

YDA4504	450 - 470 MHz	Tunable	N/A	6 dB	9 dB	4	N/A
YDA4404	440 - 460 MHz	Tunable	N/A	6 dB	9 dB	4	N/A
YDA4704	470 - 490 MHz	Tunable	N/A	6 dB	9 dB	4	N/A
YDA4904	490 - 512 MHz	Tunable	N/A	6 dB	9 dB	4	N/A
