Omnidirectional Fiberglass |
|

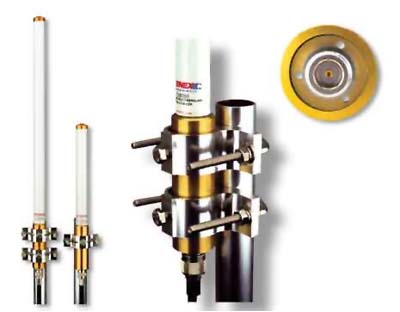

Antenex� Gold Fiberglass Base Station antennas are collinear designs enclosed in a high density fiberglass, which is covered with a protective ultraviolet inhibiting coating. The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line resulting in a �cold� sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency. Every FG fiberglass base antenna is tested on a network analyzer before shipping to assure the best VSWR performance. Features & Benefits
|
Technical Data |
| VSWR: | VHF � 3 dB - 2:1, All other models � 1.5:1 | ||||
| Maximum Power: |
100 watts - UHF and 800 models
150 watts - VHF models |
||||
| Impedance: |
50 ohms, Models with DC continuity.
|
||||
| Mounting Sleeve: | Heavy wall, gold anodized 1 1/4� aluminum. | ||||
| Radiator: | Precision copper clad elements sealed in white ultraviolet-inhibiting fiberglass radome. | ||||
| Mounts to: | See optional mounting kits listed above. | ||||
| Antenna Length: |
Gain
|
VHF
|
UHF
|
800/900
|
1.2 GHz
|
|
Unity
3 dBd 5 dBd 6 dBd 7 dBd |
68�
107� N/A N/A N/A |
26�
44� 76� N/A 107� |
15�
25� N/A 65� N/A |
25�
25� N/A 65� N/A |
|
|
Vertical Beam
Width: |
Unity
|
3 dBd
|
5 dBd |
6 dBd
|
7 dBd
|
|
75
|
33
|
20
|
17
|
17
|
|
| Antenna Weight: |
VHF 3 dBd & UHF 7 dBd = 8 lbs. All
others = 6 lbs. (or less)
|
||||
| Termination: | Recessed type �N� female connector. | ||||
| Wind Survival: | 125 M.P.H. | ||||
| Polarization: | Vertical Polarization | ||||
|
