A-Base Antennas Quarterwave, Collinear and Broad Band |
|

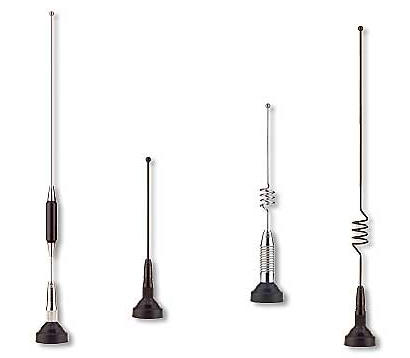

The Antenex� �A-Base� style antenna offers a durable mounting chassis that supports a wide range of rod styles, frequencies, and gain choices. The �A-Base� features a rugged ABS body with insert molded threaded ring and a triple-chrome plated ferrule. The base contact is a highly reliable gold plated push pin design. |
| TECHNICAL DATA |
| Gain: | See model. |
| Frequency Range: | See model. |
| VSWR: | <1.5:1 |
| Maximum Power: | 200 watts |
| Bandwidth: | VHF - up to 25 MHz (with spring),
UHF/800/900 - 100 MHz+ |
| Impedance: | 50 ohms |
| Mounting Base: | High temperature molded ABS with threaded brass insert. |
| Radiator: | Type 302 stainless steel with a
brite or black chrome plate finish for .062� diameter rods. 17-7ph stainless steel with a centerless ground finish or black chrome plate for all other models. |
| Brass Fittings: | Highly polished brite or black chrome plated ferrule |
| Contacts: | Gold plated push pin contact on A style. |
|
