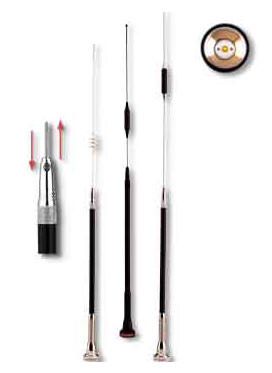

Elevated Feed Point & 5/16 Stud Mount Antennas

Antenex^� elevated feed antennas are ideal when you want a good radiation pattern from your antenna but have a poor mounting location or a non-conductive mounting surface.

The elevated feed style antenna typically mounts on the trunk of a vehicle while still allowing the radiating element to �look� over the roof line, luggage or ladder rack. Utilizing an internal circuit board counterpoise and transmission line, this antenna is one of the most durable in the industry.

Antenex^� a stud mount antennas are available where a high quality replacement is required in an existing stud mount installation. These antennas can also be used in new installations where stud mount is the mount of

Models Information

800/900 3 dB & 5 dB GAIN ELEVATED FEED POINT ANTENNAS

Model	Finish	Frequency	Center Freq	Gain	Whip Style
E8063	Chrome	806 - 896 MHz	851 MHz	3 dB	Open coil collinear
E8063C	Chrome	806 - 896 MHz	851 MHz	3 dB	Closed coil collinear
E8065C	Chrome	806 - 896 MHz	851 MHz	5 dB	Closed coil collinear
EB8063	Black	806 - 896 MHz	851 MHz	3 dB	Open coil collinear
EB8063C	Black	806 - 896 MHz	851 MHz	3 dB	Closed coil collinear
EB8065C	Black	806 - 896 MHz	851 MHz	5 dB	Closed coil collinear
EB8965C	Black	896 - 970 MHz	933 MHz	5 dB	Closed coil collinear
