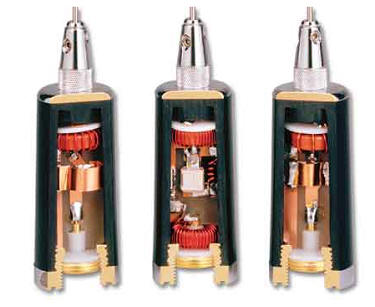

Genesis� Patented Wide-Band Technology

Genesis� Patented Wide-Band

This antenna self-tunes. There is no need to trim the whip!

All whip lengths are valid for models before adding a spring. Add �S� to the end of the part number to receive spring on coil. Models with whips longer than 49� are not available in black.

Features & Benefits

  • No Tuning Required
  • Removable Rod For Carwash
  • Easy Installation- No Rod Trimming!
  • Faster Installations - Increased Profits
  • Gold-plated Push Pin Contact For Better Power Transfer
  • O-ring Inserted on the Coil Bottom - Better Moisture Seal
  • A Solid State Miracle. The Only One of its Kind in the World
  • FedEx/UPS Shippable

TECHNICAL DATA


LOWBAND
VHF
UHF
Gain:
Unity
3 dB
5 dB
VSWR (across band):
2.0:1 or better
2.0:1 or better
2.0:1 or better
Maximum Power:
200 watts
200 watts
200 watts
Bandwidth:
Exceeds 10%
@1.8:1 VSWR
Exceeds 10%
@1.8:1 VSWR
Exceeds 10%
@1.8:1 VSWR
Impedance:
50 ohms
DC Continuity
50 ohms
DC Continuity
50 ohms
DC Continuity
Mounts to:

3/4� hole, 3/8� hole, Magnetic & Mini-Trunk Mounts.
