WISCO International- (Antenex - Mobile Antennas/Lowband)

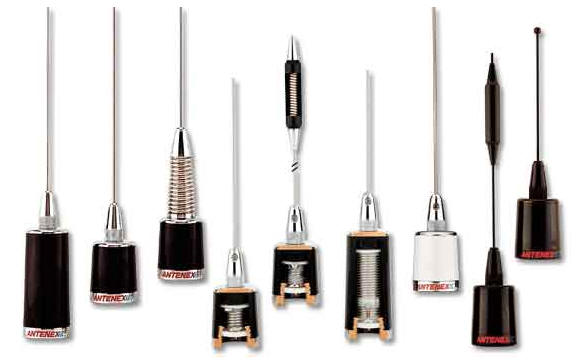

Mobile Load Coil Antennas - Lowband, VHF, UHF, 800MHz & 900MHz

Our mobile antennas are designed and built for demanding applications. They have proven themselves to outlast the cars they are mounted on. Each model is permanently marked for model and frequency. Antenex^� mobiles are used extensively on municipal vehicles, in off road racing, on industrial vehicles, taxi cabs and other high endurance applications such as police cruisers, emergency vehicles, and forestry service vehicles. The detailed attention given to the manufacture and design of our coils and coil housings ensure that they will last for years.
We manufacture over 100 variations. Our no ground plane antennas give you the flexibility you need in any mounting application, while our dual band and wide band models allow you to get full value out of today�s advanced radios. If you cannot find the right Antenex^� product for your mobile application, please contact us for pricing and availability.

Features & Benefits

Triple Chrome Plated Rod Ferrules & Bushings
Three Dimensional Coil Form
Silver Soldered Contacts
17-7 ph Stainless Whip
Gold Push Pin Contact
O-ring in the Base

Gain:	See model.
Frequency Range:	See model.
VSWR:	<1.5:1 unless otherwise noted, <2:1 for Lowband.
Maximum Power:	All models - 200 watts
Impedance:	50 ohms
Tuning:	Models are shipped at the lowest frequency in the range. Custom factory tuning is available.
Mounting Base:	Molded high heat ABS with copper, nickel, brite or black chrome solid brass inserts.
Radiator:	17-7ph tapered stainless steel whip or 17-7ph straight stainless steel collinear with a centerless ground finish or black chrome plate.
Coil Form:	3 dimensional precision machined delrin.^�
Phasing Coils:	Silver plated tempered brass.
Contacts:	Gold plated push pin.
Mounts to:	3/4�, 3/8�, Magnetic and Mini-Trunk mounts.
Quality Assurance:	100% tested on a network analyzer.
