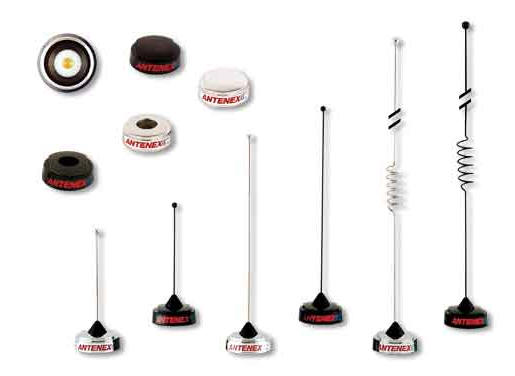

Quarterwave Antennas with Gold Contact |
|
Even our least expensive mobile antennas receive the most detailed attention. Both quarterwaves and 3 dB models feature a brass button contact and heavy duty specially formulated Stand-Up� grommets that last longer and stay straighter. For any mobile application, you can be sure that Antenex� has a feature packed solution for you. |
| TECHNICAL DATA |
| Gain: | Unity for 1/4 wave antennas and 3 dB for open coil flexible models. | |
| Frequency Range: | See model | |
| VSWR: | <2.0:1 | |
| Maximum Power: | 200 watts | |
| Bandwidth @2.0:1: | QW152 - 18 MHz QW800 - 150 MHz |
QW450 - 80 MHz QW8253 - 40 MHz |
| Impedance: | 50 ohms | |
| Tuning: | Mid-band is standard. Custom tuning is available. | |
| Mounting Base: | Bright or black chrome plated brass locking nut. | |
| Radiator: | Type 302 stainless steel. Electropolished or black chrome plate on open coil collinear. Bright finish or black chrome. | |
| Contact: | Brass button. | |
| Mounts to: | 3/4� hole, 3/8� hole, Magnetic & Mini-Trunk mounts. | |
|
