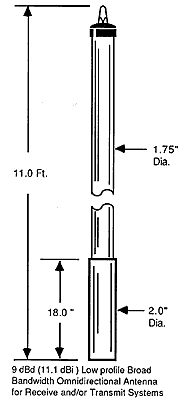

Low Profile/Broad
Bandwidth Fiberglass Omnidirectional Fiberglass Antenna
Model Number
- HS9-80669
(806-869 MHz.) TRUNKING
- HS9-82496
(824-896 MHz.) CELLULAR
- HS9-89060
(890-960 MHz.) GSM
- HS9-90142
(901-942 MHz.) PAGING
- HS9-92040
(920-940 MHz.) PAGING
- Frequency Range: 806-960
MHz
- Gain: 9 dBd (11.1 dBi)
- Bandwidth: Varies with
model (see above)
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 400
Watts Maximum Continuous
- Termination: Type N Female
- Vertical Aperture
(3 dB from max): 7 Degrees
- Weight: 16 lbs. (7.3
kg.)
- Wind Load
(Lateral thrust @ 100 mph): 40 lbs. (18.1 Kg.)
- Wind Area
(flat plate equivalent): 1.0 sq. ft. (0.09 sq.m.)
- Maximum Wind Speed: 130
mph (209 kph.)
- Material:
- Feed Lines: Copper
- Radiators: Copper
- Color: Radome White
- Mounting (top or side
mount): Galvanized steel mounting clamps permit mounting
the antenna to a support pipe up to 3.25" O.D.
- Lightning Protection: Direct
Ground
- Accessories: Reflector Tube
(adds 3 dB directional).
|
