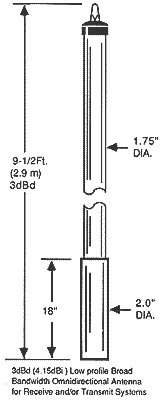

Low Profile/Broad
Bandwidth Fiberglass Omnidirectional 3dBd Gain Antenna
Model Number
- HS3-15060
(150-160 MHz.)
- HS3-16070
(160-170 MHz.)
- HS3-21626
(216-226 MHz.)
- Frequency Range: 150-170
MHz. & 216-226 MHz.
Models available in 10 MHz. segments
- Gain: 3 dBd
- Bandwidth: 10 MHz.
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 600
Watts Maximum Continuous
- Termination: Type N Female
- Vertical Aperture
(3 dB from max): 36 Degrees
- Weight
- 17 lbs. (7.7 kg.)
- Wind Load
(Lateral thrust @ 100 mph)
- 41 lbs. (18.6 Kg.)
- Wind Area (flat plate
equivalent)
- 1.1 sq. ft. (0.1 sq.m.)
- Maximum Wind Speed
- 150 mph (241 kph.)
- Material
- Feed Lines: Copper
- Radiators: Copper
- Color: Radome White
- Mounting (top or side
mount): Galvanized steel mounting clamps permit mounting
the antenna to a support pipe up to 3.25" O.D.
- Lightning Protection: Direct
Ground
|
