HEAVY DUTY 6 dBd GAIN

CELLULAR / TRUNKING / PAGING Omnidirectional Fiberglass Antenna

Model  Number

  • HD6-80669 (806-869 MHz.) TRUNKING
  • HD6-82496 (824-896 MHz.) CELLULAR
  • HD6-89060 (890-960 MHz.) GSM
  • HD6-90142 (901-942 MHz.) PAGING
  • HD6-92040 (920-940  MHz.) PAGING
    • Frequency  Range:  806-960 MHz
    • Gain:  6 dBd (8.15 dBi)
    • Bandwidth: Varies with model (see above)
    • V.S.W.R.:  1.5:1
    • Polarization:  Vertical
    • Power Rating:  600 Watts Maximum
    • Termination: Type N Female or 7/16
    • Vertical Aperture
      (3 dB from max): 16 Degrees
    • Weight:  7 lb. (3.2 kg.)
    • Wind Load
      (Lateral thrust @ 100 mph):  22 lb. (97.7 N)
    • Wind Area  (flat plate equivalent): .58  sq. ft. (0.053 sq.m.)
    • Maximum  Wind Speed: 160 mph (257 kph.)
    • Material:
      • Feed Lines: Copper
      • Radiators: Copper
    • Color: Radome White

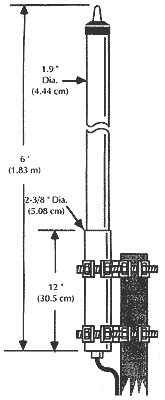

    • Mounting
      (top or side mount):  Galvanized  steel mounting clamps permit mounting the antenna to a support pipe up to 3.25"  O.D.
    • Lightning  Protection: Direct Ground
    • Accessories: Reflector Tube (adds 3 dB directional) and Side Mount Kit optional.
Radiation Patterns (Relative Field Strength)
