HEAVY DUTY SERIES 9 dBd GAIN

CELLULAR / TRUNKING / PAGING Omnidirectional  Fiberglass Antenna

Model  NumberModel HD9 Series

  • HD9-80669 (806-869 MHz.) TRUNKING
  • HD9-82496 (824-896 MHz.) CELLULAR
  • HD9-89060 (890-960 MHz.) GSM
  • HD9-90142 (901-942 MHz.) PAGING
  • HD9-92040 (920-940  MHz.) PAGING
    • Frequency Range: 806-960 MHz
    • Gain:  9 dBd (11.15 dBi)
    • Bandwidth: Varies with model (see above)
    • V.S.W.R.:  1.5:1
    • Polarization:  Vertical
    • Power Rating:  600 Watts Maximum
    • Termination: Type N Female or 7/16
    • Vertical Aperture (3 dB from max): 7 Degrees
    • Weight:  17 lb. (7.7 kg.)
    • Wind Load
      (Lateral thrust @ 100 mph):  41 lb. (182 N)
    • Wind Area (flat plate equivalent): 1.2  sq. ft. (0.111 sq.m.)
    • Maximum  Wind Speed: 160 mph (257 kph.)
    • Material
      • Feed Lines: Copper
      • Radiators: Copper
    • Color: Radome White

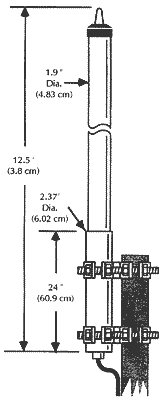

    • Mounting
      (top or side mount): Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
    • Lightning  Protection: Direct Ground
    • Accessories: Reflector Tube (adds 3 dB  directional) and Side Mount Kit optional.
Radiation Patterns (Relative Field Strength)
