Broad Bandwidth UHF
Omnidirectional Fiberglass Antenna
Model Number
- HD9-40630
(406-430 MHz.)
- HD9-43050
(430-450 MHz.)
- HD9-45070
(450-470 MHz.)
- HD9-47090
(470-490 MHz.)
- HD9-49051
(490-512 MHz.)
- Frequency Range: 406-512
MHz.
- Gain: 9 dBd (11.15
dBi)
- Bandwidth: 20 MHz.
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 600
Watts Maximum Continuous
- Termination: Type N Female
- Vertical Aperture
(3 dB from max): 7 Degrees
- Weight: 21 lb. (9.5
kg.)
- Wind Load
(Lateral thrust @ 100 mph): 68 lb. (302N)
- Wind Area
(flat plate equivalent): 1.3 sq. ft. (0.12 sq.m.)
- Maximum Wind Speed
- 150 mph (241 kph.)
- Material:
- Feed Lines: Copper
- Radiators: Copper
- Color: Radome White

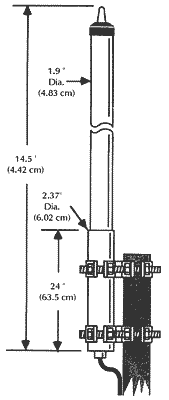

- Mounting (top or side
mount): Galvanized steel mounting clamps permit mounting
the antenna to a support pipe up to 3.25" O.D.
- Lightning Protection: Direct
Ground
- Accessories: Reflector Tube
(adds 3 dBb directional) and Side Mount Kit optional.
|
