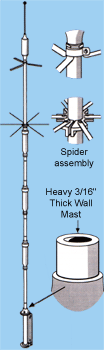

5 Band Vertical HF Fixed Station 10, 15, 20, 40, and 75 or 80 MetersHF-5

Full band coverage on 10-40 meters (1.6:1 at band edges typical).  Solid one inch fiberglass trap forms for optimum mechanical stability. Heavy gauge aluminum with stainless steel hardware construction throughout.  Feed with any length 50 ohm coax.

Model 5-BTV
  • Electrical:
    • SWR: 1.6:1 at band edges
    • Bandwidth: up to 100 kHz. on 75/80 meters
    • Power: full legal limit CW and SSB 1000 watts
  • Mechanical:
    • Length: 25'1" long
    • Weight: 17 lb.
    • Wind Load: 29 lb. at 70 mph
    • Mounting:
      • Ground mount with or without radials, roof or tower mount with radials.
      • Vertical support up to 1.75 in. O.D. pipe.

Bandwidths
