10,12,15,17,20,30,40,75
and 80 Meters
If you are serious about HF mobile
operation the Hustler HF Mobile System is the obvious choice. Hustler
manufactures and sells more HF mobile antennas world wide than anyone.
No other manufacturer offers the convenience, the flexibility or the
pure performance that Hustler does.
Our HF Mobile System offers a wide variety of components which enable
you to customize your installation to fit your present and future
needs. A choice of four different support masts provides an
installation solution for every vehicle. A selection of seventeen
interchangeable resonators in high and moderate power levels and
varying bandwidths are available.
A full complement of accessories such as springs, a multi band adapter
and a quick disconnect device complete the system. Experience the
satisfaction that comes with owning the best in the world --- the Hustler
HF Mobile System.
Select from Quality Deck,
Fender or Bumper Mount Designs

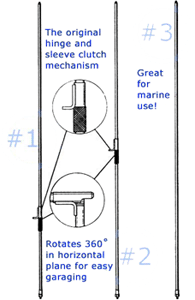

  Model
MO-1 (#1 in photo)
- For deck or fender mounting, folds at
roof line 15" above the base.
- Shake proof clutch sleeve.
- Masts are made from the highest
quality heat treated aluminum and chrome plated brass.
- Stainless steel base is threaded to
fit all Hustler and other 3/8" x 24 thread ball mounts.
Model MO-2
(#2 in photo)
- Same as the MO-1 but folds at the roof
line, 27" above the base for bumper mounting.
Model MO-3
(#3 in photo)
- 54" high aluminum mast, white
vinyl coating.
- Stainless steel base is threaded to
fit all Hustler and other 3/8" X 24 thread ball mounts.
Model MO-4
(#4 in photo)
- Only 22" long.
- Suitable for trunk or deck mounting,
includes three new tip rods.
- 3/8" x 24 threads at both ends.

Standard Resonators
Power Rating 400 Watts
|
Part Number
|
Description
|
Approximate
Bandwidth
2:1 SWR or better
|
|
RM-10 (near right)
|
10 Meter
|
150-250 kHz
|
|
RM-12
|
12 Meter
|
90-120 kHz
|
|
RM-15
|
15 Meter
|
100-150 kHz
|
|
RM-17
|
17 Meter
|
120-150 kHz
|
|
RM-20
|
20 Meter
|
80-100 kHz
|
|
RM-30
|
30 Meter
|
50-60 kHz
|
|
RM-40
|
40 Meter
|
40-50 kHz
|
|
RM-75 (far right)
|
75 Meter
|
25-30 kHz
|
|
RM-80
|
80 Meter
|
25-30 KHz
|
Super Resonators
Power rating full legal limit. Super resonators also offer
wider bandwidth, especially on 40, 75, and 80 meters.

|
Part Number
|
Description
|
Approximate
Bandwidth
2:1 SWR or better
|
|
RM-10-S (near right)
|
10 Meter
|
250-400 kHz
|
|
RM-15-S
|
15 Meter
|
150-200 kHz
|
|
RM-20-S
|
20 Meter
|
100-150 kHz
|
|
RM-40-S
|
40 Meter
|
50-80 kHz
|
|
RM-75-S
|
75 Meter
|
50-80 kHz
|
|
RM-80-S (far right)
|
80 Meter
|
50-80 kHz
|
Recommended
Accessories
QD-2 Quick disconnect
VP-1 Tri-band adapter
RSS-2 Resonator spring Mounts |
