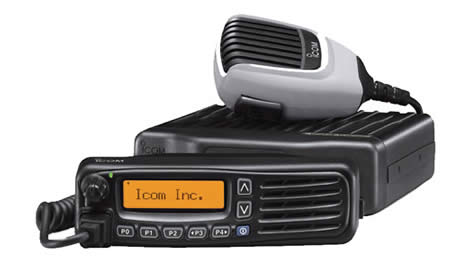

WISCO International (ICOM- IC-F5061D /IC-F6061D)

Conventional/LTR™/Digital*—Multi-Mode Professional Mobile

With UT-126H installed. Already installed to IC-F5061, IC-F6061 "D" versions. The IC-F5061/D series is ideal for public safety, business & industry, transportation and delivery service users. It offers advanced multi-mode operation, improved scanning and flexible installation that is suitable for mobile and base stations.

IC-F5061 Series

MDC 1200 Compatibles

PTT ID, selective call (Selcall) and emergency call features are available with the built-in MDC signaling.
The PTT ID function sends your unit ID number when you push (or release) the PTT button. The received ID number can be decoded as a user name using the alias table. Selective calling enables you to call individuals or groups, depending on your needs.

The emergency call feature allows you to send and repeat an emergency message to dispatch until the dispatch responds to it. In these situations, the radio can transmit anything the microphone hears and the dispatcher can monitor the background sounds. Radio check, status, message, radio stun/revive and call log features are also available.

IDAS system digital mode ready

IDAS (Icom Digital Advanced System) is Icom’s digital land mobile radio system using the NXDN™ common air interface.

It has useful calling features including selective calling, status message, radio stun/revive/kill, etc,.

The IC-F5061 series provides 2 optional slots: one for the UT-126H digital unit and one for an additional option board.

Detachable front panel

With the optional remote control kit, RMK-3 and separation cable, the front panel of the radio can be detached from the main unit. It allows for flexible installation even in limited installation space. Separation cable length is selectable from 1.9m, 3.0m and 8.0m*. * 6.2ft, 9.8ft and 26.2ft respectively.

Dot matrix, multi-function LCD

With a high contrast dot matrix display, upper and lower case characters can be easily distinguished. You can change the display setting to show one line and 12 characters, or two lines and 24 characters via programming. LCD backlighting is standard.

Front mounted speaker

4 watts (typ.) front mounted speaker delivers clear and loud audio. The built-in audio compander improves the signal to noise ratio.

IP54 dust-protection and splash resistance (Controller only)

The rugged die-cast chassis and polycarbonate front panel are resistant to shock and vibration. When used with the optional separation kit, the remote control head has dust-protection and splash resistant construction, equivalent to IP54.

Wide frequency range and large channel capacity

The IC-F5061 series covers a wide frequency range in one version (VHF 136–174MHz, UHF 400 – 470MHz or 450–512 MHz). The 512 memory channel capacity with 128 zones allows you to divide and store a variety of flexible channel groupings.

Basic LTR™/Conventional mode operation

Group, selective, and phone calls are all available in LTR™ mode. Get efficient trunking operation without the need for any optional module.

Multiple 2-Tone, 5-Tone signalings

The built-in 2-Tone and 5-Tone capabilities allows you to send a tone code with your call and decode multiple tone codes on a channel. 40 pairs of CTCSS/ DTCS memory channels are available.

Voting mode scan

The voting scan detects the signal strength level of repeater sites and automatically selects the strongest station or the first station to exceed the preset signal level. This is useful for roaming between 2 or more repeater sites.

Enhanced scanning

While scanning, you can program which Tx channel you want when you press PTT button. Start channel, last detected channel, priority or a preprogrammed channel are selectable. In addition, the nuisance delete function temporary removes a busy channel from the scanning list.

Built-in inversion-type voice scrambler

The built-in inversion type voice scrambler provides secure conversation. When a more secure system is required, the 32 code non-rolling- type voice scrambler UT-109R and 1020 code rolling type UT-110R are available as an option. * Inversion type voice scrambler is not compatible with UT-109/UT-110 voice scrambler.

D-sub accessory connector

The IC-F5061 series has a D-SUB 25 pin ACC connector for connecting various external devices.

Other features

Advanced scanning functions including Tx channel, talk back and mode dependent scan
8 DTMF autodial memories and ANI function with DTMF
Heavy duty, dynamic microphone HM-148
Power on password
Embedded ESN
Radio stun, kill and revive functions disable or re-enable a lost or stolen unit over the air
Busy repeater lockout function
Surveillance function temporarily turns off the LED backlight and beep sound
Convenient key assign sticker is supplied
Microphone hanger action programmable
Ignition sensing line
±1ppm frequency stability
Lone worker function
Escalarting alert
Flash CPU for future upgrade and more...

Supplied Accessories

Hand microphone, HM-148
DC power cable
Microphone hanger
Mounting bracket kit
Key assign stickers
