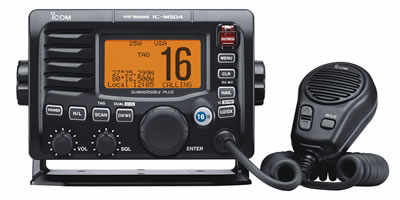

The Submersible PLUS Marine VHF with Class DDSC

IPX8 Submersible PLUS (1.5m depth for 30 minutes)
The IC-M504 withstands submersion in up to 1.5m depth of water for 30 minutes. It is equivalent to the IPX8 standard. All products are rigorously checked to pass the quality test at the factory.

Large LCD with dot-matrix characters
The IC-M504 has a 168-charactor, full-dot matrix display that allows you to easily view a variety of information, such as GPS data, DSC emergency data, etc. The large buttons and knobs provide user friendly operation.

ITU Class D DSC
The IC-M504 has built-in class D DSC, which enables you to constantly monitor channel 70. This functionality provides users at sea with the peace of mind that they can call for help by pressing the “Distress” button if the need arises.

Position Request and Position Report
Over and above the DSC, your own and other ships’ position data can be exchanged with the position request or position report functions. The received position information can be transferred to external navigation equipment*. In addition, the polling (request/ reply) function checks whether a specific ship is within the communications range.
* External GPS receiver and navigation equipments which accept NMEA 0183 format are required.

Superior receiver performance
The IC-M504 has excellent receive specifications of 80dB (typical) for intermodulation rejection, adjacent channel selectivity, and 0.22µV (typical) high sensitivity. The IC-M504’s superior receiver provides excellent resistance to intermodulation and allows you to catch a weak signal between strong stations.

Excellent audio output power
The extra large speaker is mounted into a well spaced housing, producing greater sound than the specified 4.5W output power. You can get clear and loud reception without requiring repetition of the message, even over the engine or other background noise.

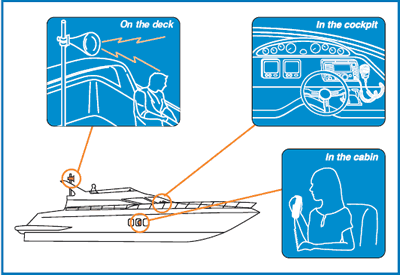

25W hailer/RX speaker and auto foghorn
When connected to a hailer horn or external speaker on the deck or tower, you can make an announcement on-board from the microphone. The RX speaker function, “receiver-repeater”, allows you to monitor the received audio. Four foghorn patterns are also available for the automatic foghorn.

Other features

• Dual/tri-watch function for monitoring Ch.16 and/or call channel
• Instant access to Ch. 16 and call channel
• 7 levels adjustable backlit display and keypad
• Convenient “TAG” scanning function with simple add/delete
• Optional Voice Scrambler, UT-112 for private communication
• Supplied speaker microphone to draw the speaker to your ear
• Rear panel microphone version available
  Ask your dealer for details
• Black or gray color versions

Optional fully integrated COMMANDMICIII™

Full control 2nd station capability
The COMMANDMICIII™ is a remote control for the IC-M504 that may be positioned up to 18.3m (60ft) away from the IC-M504. All M504 functions,
including distress call, DSC, and foghorn, are available. The COMMANDMICIII™ may also be used as an intercom with the IC-M504.

Multi function "Jog" dial
A newly designed multi function Jog dial gives you quick and easy access to many M504 settings, including operating channel, volume, squelch, menu settings and more.

Other features

• Full dot-matrix LCD with 7-step
  dimmer setting
• 2.8W (typical) external speaker terminal
• Submersible PLUS (1.5m depth
  for 30 minutes)
• Extra large 45mm (d) speaker for superior audio

Supplied accessories

• Hand microphone
• DC power cable
• Spare fuses
• Mounting bracket kit
