IC-M602
Specifications
GENERAL
Frequency coverage (Unit; MHz) : Tx   156.025 - 157.425
  Rx   156.050 - 163.275
Usable channels : All International, U.S.A.* and Canadian* channels;
  plus 10 weather*     channels (* U.S.A. version only)
Type of emission : 16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement : 13.8 V DC ±15% (neg. ground)
Current drain (at 13.8 V DC)
: Tx   at 25 W
  Rx (Max. audio output)		   5.2 A
  1.2 A
Operating temperature range : -20°C to +60°C; -4°F to +140°F
Antenna connector : SO-239 (50 Ω)
Dimensions (proj. not incl.) : 220(W) × 110(H) × 109.4(D) mm
   8 21/32(W) × 4 11/32(H) × 4 5/16(D) in
Weight : 1.35kg; 2.97lb
 TRANSMITTER
Output power (at 13.8 V DC) : High   25 W
  Low     1 W
Modulation system; : Variable reactance freq. modulation
Adjacent channel power  : 70 dB
Residual modulation : More than 40dB
Spurious emissions : Less than -70 dBc
 RECEIVER
Receive system : Double conversion superheterodyne
Intermediate freq. : 1st  31.05MHz   2nd  450kHz
  (DSC) 1st  21.7MHz   2nd  450kHz
Sensitivity (at 12 dB SINAD) : Less than 0.32 µV
Squelch sensitivity : Less than 0.32 µV
Adj. channel selectivity (wide/narrow) : More than 80 dB
Intermodulation rejection : More than 80 dB
Spurious response rejection : More than 80 dB
Audio output power : 5 W typ. at 10% distortion with a 4 Ω load
GPS interface : NMEA0183 version 2.0 or 3.01

OPTIONS

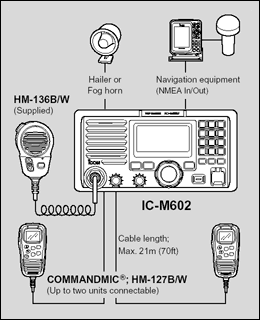

SYSTEM OVERVIEW

  • MB-75 FLUSH MOUNT KIT
    For flush-mounting the IC-M602 to a flat surface such as an instrument control panel.
  • HM-136B/W SMART-SPEAKER-MICROPHONE
    Detachable waterproof speaker microphone. Same as supplied.
  • UT-112 VOICE SCRAMBLER UNIT
    Enables private communication by scrambling your voice signal. Up to 32 scrambling codes are available.
    Not available in some countries.
  • OPC-999 EXTENSION CABLE FOR HM-127B/W
    6 m (20 ft) of extension cable for additional separation length when using the COMMANDMIC(R).
  • HM-127B/W REMOTE-CONTROL MICROPHONE
    The COMMANDMIC(R) fits in your palm comfortably. Its sizable LCD offers ease and convenience to operate from remote locations. You can talk with the IC-M602 as an intercom.
    DSC, hailer and fog horn are not possible.
    Size (W × H × D): 63.5 × 125.0 × 31.4mm; 2 1⁄2 × 4 29⁄32 × 1 1⁄4 in.
    Weight (approx.; except cables): 150g ; 5.3oz
