IDAS bridges the gap between analog and digital systems

IDAS is Icom's digital land mobile radio system using the NXDN™ common air interface. It has useful calling features including selective calling, status message, radio stun/kill/revive and GPS position reporting, etc. The IDAS system is ideal for business and industry users who may want to migrate to a digital system or to the future FCC mandated narrow band spacing.

Double your channel capacity
IDAS doubles the capacity of the current 12.5kHz channel allocation. Icom allows you to meet any narrow banding requirements today, and provides a solution to any future spectrum deficiencies.

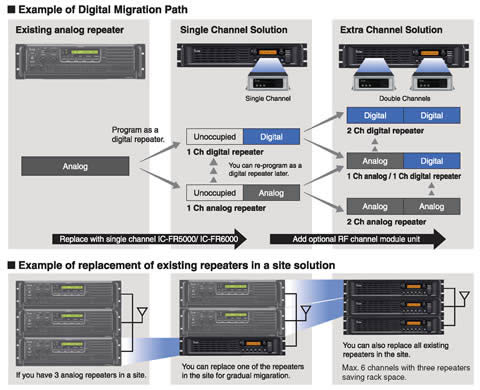

Digital/analog mixed mode operation
The IC-FR5000 series can receive both analog and digital signals on a single channel. You can partially introduce the IDAS system, while using the existing analog radios in a system. The IDAS system allows you to scale migration to narrow band digital at your own pace and need.

Improved audio quality
The IDAS system occupies only 6.25kHz spacing per channel. With the improved sensitivity of narrow band communications, increased communication greater than 12.5kHz analog mode can be achieved. The IDAS system uses the AMBE+2™ codec, which provides clear audio and simultaneous data communication.

Network interface*
The IDAS repeater has a network interface* and can be connected to a LAN or the Internet via Ethernet cable. Communication range is vastly extended by the Internet connection and eliminates the need for expensive leased lines. When connected to a PC via a LAN or the Internet, you can remotely maintain the repeater configuration remotely from your PC.
* Option (Available in the future)

Digital trunking capability*
The repeater will also have digital trunking capability in the near future. This will allow you further effective channel management by sharing a minimum of channels with a large number of users.
* Some features are planned and released in the future.

19-inch rack mount 2U height low profile design
A 2U height configuration allows you to stack multiple units in an industry standard 19-inch rack.

Two RF channel modules in one unit

Two RF modules* can be installed in a chassis to reduce installation space, while the RF modules can be programmed and operated independently. LEDs on the front panel show both channel conditions.
* Optional UR-FR5000/UR-FR6000 required.

Multiple CTCSS, DTCS tone and RAN code decode
The IC-FR5000 series decodes multiple CTCSS and DTCS as well as digital RAN (Radio Access Number) codes on a per channel basis (up to 16 tones/codes) and downlinks the received signal with a specified tone/code. This function is useful for sharing a channel with multiple groups and provides quiet stand-by while using other groups.

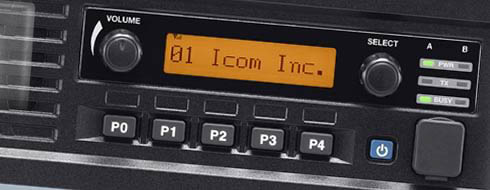

Easy-to-see display and 5 programmable buttons
The 12-digit dot-matrix display, 5 programmable buttons, 32 memory channels and internal speaker allow you to use the repeater as a base station or to check repeater activity.

D-SUB 25-pin accessory connector
The IC-FR5000 series has a programmable D-SUB 25-pin accessory connector for connecting various trunking controllers or external remote control devices. Also, modulation/ demodulation signals can be input/ output from the D-SUB connector.

• Audio compander*
• PTT priority setting (Local Mic., external PTT or repeater operation)
• Built-in inversion type voice scrambler and optional voice scrambler UT-109R or UT-110R*
• 5-Tone and DTMF encoder/decoder* and CW ID transmitter
• Analog wide/narrow (12.5/25kHz) channel spacing programmable*
• Normal and priority scan
• Convenient key assign stickers supplied
• Quick and easy programming from a PC

Offers an integrated system

• Selective call, group call and talk group ID
• Status call/request
• Radio check
• Radio stun/kill/revive
• Data call
• Digital voice encryption
• Emergency call
• Call alert
• Call log
