EASY-LINK RF/IP

The EASY-LINK RF/IP is a controller using VOICE over IP technology to provide single-user linking between two different radio systems.

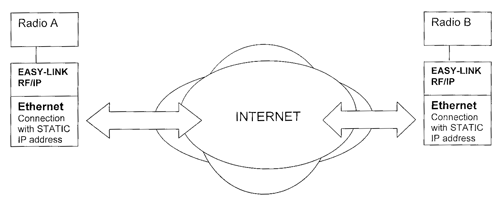

Using a pair of EASY-LINK RF/IP eliminates their need for phone lines or microwave. For linking between LTR systems, the EASY-LINK RF/IP uses the control station frequencies for the SMR sites being linked. Cross-band linking between other systems uses the frequencies already in use by the other systems, so additional linking frequencies are not needed. Once the installation is complete, an EASY-LINK RF/IP will communicate with another EASY-LINK RF/IP via Ethernet TCP/IP and UDP protocol. The two EASY-LINK RF/IP units along with Static IP addresses allow two radios to be remotely connected providing bi-directional operation.

Operations is also completely transparent to the end user with virtually no audio loss or degradation. No DTMF microphone, special signaling methods or other complicated procedures are needed in order to establish a path between EASY-LINK RF/IP's.

CAPABILITIES and FEATURES:

PROVIDES SINGLE USER LINKING BETWEEN RADIO SYSTEMS
LTR
Conventional
Cross Band

LOW COST VoiP TECHNOLOGY
No phones
No microwave
No special linking frequencies

EASY TO OPERATE
No DTMF
No extra signaling methods
No special procedures

IDEAL for LINKING LTR TRUNKING CUSTOMERS
Automatic Path Turnaround reverses path to provide faster system access
Provides LTR "go ahead" and "fail" tones

EASY TO SET UP
Interfaces to various radios
Amplified and muted RX to TX paths
Automatic reconnect if ISP connection is lost
Audio levels are adjustable externally
PC programmable using WEB browser
Routable through firewalls

SPECIFICATIONS:
