 VHF/UHF FM Repeater-Base Units

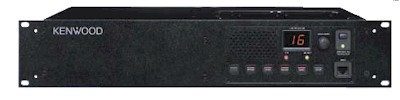

TKR-750 / 850

High-performance features such as 16 full-duplex channels, flash memory, and PC/manual tuning — provide crystal-clear and reliable communications to make Kenwood’s TKR-750/850 VHF/UHF FM repeaters the first choice for demanding applications.

TKR-750-TKR-850

HIGH STABILITY 100 % CONTINUOUS DUTY

The 50-Series high stability 1.5PPM TCXO modules, 100% duty RF power amplifier (25W output), integrated diet-cast heat sink and forced-air cooling provides site-friendly reliable 24/7-operation. The TKR-750 high power output is 50W (at 50% duty) a TKR-850 is 40W (at 50% duty)

16 FULL-DUPLEX CHANNELS & SINGLE PRIORITY SCAN

With 16 full-duplex channels, these versatile repeaters can function as a base station or repeater backup unit to suit various applications. The built-in 16 channels are preset and selectable from a remote control utilizing the remote I/O connector or pre-programmed key on the front panel. The programmable function (PF) keys located on the front panel permit adjustment and testing of repeater sites. In addition, single priority scan is available when the unit is operating in simplex mode.

QT/DQT WITH DSP MULTI-DECODE

For QT/DQT groups sharing the same RF signal range, DSP processing allows up to 16 QT/DQT signal variations to be processed simultaneously via the multi-decode function. Two decode tables (main/sub) are available to facilitate the setup of channels to different multi-decode ranges.

COMPANDED AUDIO

A built-in compander contributes to improved audio when operating as a simplex base station. A wide/narrow setting is available for each channel.

FLASH MEMORY

Flash memory permits updates, advanced feature sets and system architectural changes to be made electronically without ever opening the unit. This means faster modifications for system operators and less downtime for users.

2-DIGIT NUMERIC LED DISPLAY

The 2-digit numeric LED on the front panel displays channel number and operational status information, such as an "unlocked" error.

LED INDICATORS

The LED indicator lights provide clear system status information at a glance, including transmit, receive, battery backup, and DC power. If the transmitter or receiver becomes unlocked, the LEDs flash for quick problem assessment.

WIDE/NARROW CHANNEL BANDWIDTH PER CHANNEL

The TKR-750/850 can handle both existing wide-band systems and emerging narrow band applications for extra flexibility and long-term viability. For VHF channels, compatibility is provided for a minimum frequency of 2.5kHz (U.S.A. only).

WINDOWS� PROGRAMMING AND TUNING SOFTWARE

The repeater can be programmed from a Windows� compatible PC quickly and efficiently without ever opening the case — using the optional FPU and programming interface cable. Among the radio parameters available for programming are:

Squelch Signaling balance RX audio signal output (RA) QT deviation RX detector signal output (RD) DQT deviation RX frequency Test tone deviation RF output power CW ID deviation Maximum deviation Repeat gain TX audio input (TA) TX frequency Signaling deviation (TD)

Manual tuning is available for the following set-tings: RX helical resonator block bandwidth, MCF waveform, Quad detector coil, and MIC sensitivity.

6 PF KEYS & LOCAL SPEAKER

In addition to 6 programmable function keys (each equipped with an LED indicator), the front panel has a built-in speaker. This makes it easy to check on repeater site reception conditions. There is also a microphone terminal to allow audio transmission.

EMBEDDED MESSAGE WITH PASSWORD LOCK

The repeater’s flash memory can store an electronic message — with password protection — containing owner identification, property ID numbers, user and department names, service records, etc. Additionally, the FPU can be used to display an electronic serial number. A unit can thus be electronically identified even if the external labels, marking or factory serial numbers have been removed.

EXTERNAL CONTROL I/O

The D-SUB25 connector on the rear panel provides a control I/O interface for external controllers to enable customization and integration with other features and capabilities.

BATTERY BACKUP SYSTEM

Several power-saving features, including a display off function, help to reduce consumption. A built-in backup system supports automatic switching to a 12v battery* if the AC-based power supply* fails.
