YA5740W / YA6740W

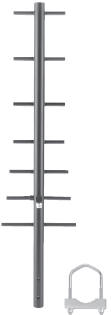

Fully welded seven-element Yagi for SMR, cellular or data frequencies.
*Optional heavy duty bracket available.

MODEL FREQUENCY
YA5740W 740 - 806 MHz
YA5800W 806 - 866 MHz
YA5825W 824 - 896 MHz
YA5900W 890 - 960 MHz
SPECIFICATIONS
GAIN 9 dBd / 11 dBi
TYPE Seven element welded
VSWR 2:1 or less
POWER RATING 300 watts
MAX LENGTH 29.5"
FEED CONNECTION N Female
VERTICAL BEAMWIDTH 45�
WIND LOAD 100 mph

Fully welded four-element Yagi for SMR, cellular or data frequencies.

MODEL FREQUENCY
YA6740W 740 - 806 MHz
YA6800W 806 - 866 MHz
YA6825W 824 - 896 MHz
YA6900W 890 - 960 MHz
SPECIFICATIONS
GAIN 6 dBd / 8 dBi
TYPE Seven element welded
VSWR 2:1 or less
POWER RATING 300 watts
MAX LENGTH 17.5"
FEED CONNECTION N Female
VERTICAL BEAMWIDTH 58�
WIND LOAD 100 mph
