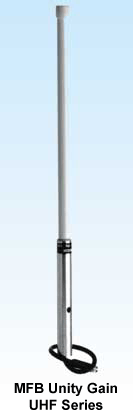

The MFB UHF Series is a base matched half wave antenna encapsulated in a heavy duty fiberglass radome with a thick walled aluminum mounting base for reliable long term use. All models are DC grounded and are UPS shippable. MFB Unity Gain UHF Series

Features:

UPS shippable
Effective "J" pole design requires no radials or ground plane
Exceptional value

General Specifications - MFB UHF

Radiator Material:
Coated steel wire
Radome Material:
Pultruded white fiberglass
Termination:
"N" Male with 16" Jumper; "N" Female & SO-239 optional
Lightning Protection:
DC grounded
Wind Survival:
100 mph
Mounting Base Diameter:
1 5/16"
Maximum Power:
250 watts
Mounting Hardware:
MMK-1 Light duty mast mounting for antennas under 30"
MMK-3 Light duty mast mounting for antennas over 30"
MYK-4 Heavy duty mast mounting for antennas over 30"
MYK-16 Heavy duty mast mounting for antennas under 30"
Hardware is sold & ordered separately
Wall Mounting Bracket:
MBSWM for antennas over 30" (2 required)
Nominal Impedance:
50 Ohms

Model	Frequency Range	Factory Tuned Frequency	Gain	Bandwidth @ 1.5:1	Vertical Beamwidth @ 1/2 Power
Electrical Specifications MFB UHF Series
MFB-3400	340-360 MHz	350 MHz	Unity	10 MHz	90°
MFB-4060	406-416 MHz	411 MHz	Unity	10 MHz	90°
MFB-4100	410-420 MHz	415 MHz	Unity	10 MHz	90°
MFB-4200	420-430 MHz	425 MHz	Unity	10 MHz	90°
MFB-4300	430-440 MHz	435 MHz	Unity	10 MHz	90°
MFB-4400	440-450 MHz	445 MHz	Unity	10 MHz	90°
MFB-4500	450-460 MHz	455 MHz	Unity	10 MHz	90°
MFB-4600	460-470 MHz	465 MHz	Unity	10 MHz	90°
MFB-4700	470-480 MHz	475 MHz	Unity	10 MHz	90°
MFB-4800	480-490 MHz	485 MHz	Unity	10 MHz	90°
MFB-4900	490-500 MHz	495 MHz	Unity	10 MHz	90°
MFB-5000	500-512 MHz	506 MHz	Unity	10 MHz	90°
MFB-3883	388-398 MHz	393 MHz	3dB	10 MHz	38°
MFB-4063	406-416 MHz	411 MHz	3dB	10 MHz	38°
MFB-4103	410-420 MHz	415 MHz	3dB	10 MHz	38°
MFB-4203	420-430 MHz	425 MHz	3dB	10 MHz	38°
MFB-4303	430-440 MHz	435 MHz	3dB	10 MHz	38°
MFB-4403	440-450 MHz	445 MHz	3dB	10 MHz	38°
MFB-4503	450-460 MHz	455 MHz	3dB	10 MHz	38°
MFB-4603	460-470 MHz	465 MHz	3dB	10 MHz	38°
MFB-4703	470-480 MHz	475 MHz	3dB	10 MHz	38°
MFB-4803	480-490 MHz	485 MHz	3dB	10 MHz	38°
MFB-4903	490-500 MHz	495 MHz	3dB	10 MHz	38°
MFB-5003	500-512 MHz	506 MHz	3dB	10 MHz	38°
MFB-3955	390-400 MHz	395 MHz	5dB	10 MHz	27°
MFB-4065	406-416 MHz	411 MHz	5dB	10 MHz	27°
MFB-4105	410-420 MHz	415 MHz	5dB	10 MHz	27°
MFB-4205	420-430 MHz	425 MHz	5dB	10 MHz	27°
MFB-4305	430-440 MHz	435 MHz	5dB	10 MHz	27°
MFB-4405	440-450 MHz	445 MHz	5dB	10 MHz	27°
MFB-4505	450-460 MHz	455 MHz	5dB	10 MHz	27°
MFB-4605	460-470 MHz	465 MHz	5dB	10 MHz	27°
MFB-4705	470-480 MHz	475 MHz	5dB	10 MHz	27°
MFB-4805	480-490 MHz	485 MHz	5dB	10 MHz	27°
MFB-4905	490-500 MHz	495 MHz	5dB	10 MHz	27°
MFB-5005	500-512 MHz	506 MHz	5dB	10 MHz	27°

Model	Equivalent Flat Plate Area	Lateral Thrust @ Rated Wind	Bending Moment @ Rated Wind	Height	Weight
Mechanical Specifications MFB UHF Series
MFB-3400	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4060	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4100	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4200	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4300	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4400	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4500	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4600	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4700	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4800	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-4900	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-5000	.11 sq ft	5 lbs	5.2 ft-lbs	30"	1 lbs
MFB-3883	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4063	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4103	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4203	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4303	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4403	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4503	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4603	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4703	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4803	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-4903	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-5003	.30 sq ft	10.8 lbs	29 ft-lbs	71"	4 lbs
MFB-3955	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4065	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4105	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4205	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4305	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4405	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4505	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4605	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4705	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4805	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-4905	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
MFB-5005	.35 sq ft	12.6 lbs	40.4 ft-lbs	77"	4.5 lbs
Mount sold separately (see above) For SO-239 connector add $3.00; For N female connector add $10.00
