WISCO International (MidLand (SRC-40 Series)

SRC-40 Series
Community repeaters

Long Distance Efficiency

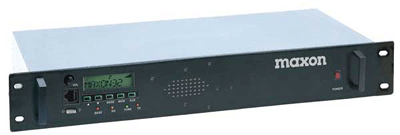

The Maxon SRC-40 Series Community Conventional Repeaters deliver 40 Watts of power both on VHF and UHF frequencies. You can provide service for up to 64 unique user IDs per channel with this system.

SRC-40

Community Repeater without Duplexer
SRC-40V (VHF) 148-174 MHz
SRC-40U (UHF) 450-480 MHz

Community Repeater with Duplexer
SRC-40V (VHF) 148-160 MHz
SRC-40U (UHF) 450-480 MHz

Features

Up to 40 Watt
16 Channels operation
Supports up to 64 Unique user IDs per channel
12.5/25 KHz Channel Spacing
Windows-based programming
Busy system queuing
Marked idle
Busy channel lockout
"Hot Swap" capability in case of TX or RX failure.
50 CTCSS Tones /112 DCS Codes
Cross tone/ code encoding
Per user adjustable settings:
3 courtesy tones, adjustable hang timer and tone in tail selectable
Remote Programming via DTMF
Continuous wave identification (international MORSE code)-8 digit
Carrier TX /RX status LED
Programmable repeater time-out-timer
Tone lock high performance decoding
8-Character display
Internal speaker
Volume control
Local control
5-Button keypad
