WISCO International (Newmar -AC Ship/Shore Switches & Panels)

An Ac source selector switch is an essential item for any boat with an on-board AC generator and/or inverter. The switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.

These switches are fitted with a compact escutcheon plate with engraved switch position nomenclature (mounting dimensions below).

The switches carry UL, CSA and VDE approval and feature heavy duty contacts and a positive step cam mechanism for low resistance contact closure. May be installed in panel with thickness up to 1/4".

Model	Amperage @ 115/230	Number of Poles	Switch Positions	Escutcheon Plate Markings	Depth Dimensions
SS-3.0	30	2	2 + "OFF"	GEN-OFF-SHORE	2 1/8"
SS-7.5	63	2	2 + "OFF"	GEN-OFF-SHORE	2 3/8"
SS-7.5 INV**	63	2	3 + "OFF"	OFF-GEN-INV-SHORE	3 1/2"
SS-15*	126	2	2 + "OFF"	GEN-OFF-SHORE	4"

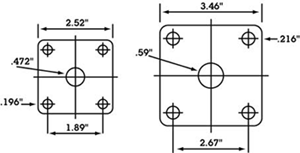

Mounting Flange Dimensions

Special Order Switches

If none of the standard switches listed above meet your requirements, NEWMAR will custom configure an AC selector switch for you.

1) Determine the following:

A) Amperage/kW rating required

B) Number of switch positions required

C) Number of poles required

2) Use the chart below to determine model number:

/kw Rating @ 120 VAC	2 Pole	3 Pole	2 Pole	3 Pole	2 Pole	3 Pole
63 Amp (7.5 kw)	S-622	S-632	S-623	S-633	S-624	S-634
80 Amp (10 kw)	S-822	S-832	S-823	S-833	S-824	S-834
100 Amp (12.5 kw)	S-1022	S-1032	S-1023	S-1033	S-1024	S-1034
125 Amp (15.5 kw)	S-1222	S-1232	S-1223	S-1233	S-1224	S-1234

3) Select the desired switch selector position labeling from the following list; or specify the position labeling you require
SHORE	GEN	PORT SHORE	PORT GEN
SHORE 1	GEN 1	STBD SHORE	STBD GEN
SHORE 2	GEN 2	INV

If you have need for a specific arrangement of the switch selector position labels, please mention this at the time of ordering. Note: Combination switches similar to one used in our ES-5 panel also available. Contact factory for more information..

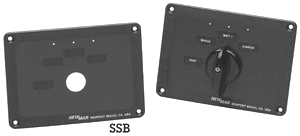

Ship/Shore Switch Panel Blank Model: SSB

Mount any of the stock or special order ship-shore switches listed above in this highly versatile panel blank. It accommodates any of NEWMAR's 3 kW, 7.5 kW or 15 kW switches configured as two position plus off or three position plus off.

A label set of 22 common AC functions is provided. These fit into milled recesses in the panel which correspond to the various switch positions. The panel is manufactured of 1/8" thick black anodized aluminum which is stylishly accented with a complementary gray silk-screen patina which matches other Newmar panels. The switch is secured in place with press-in studs on the panel rear.

The panel is also engineered to accommodate indicator lights for each of the active AC positions. Lights are sold separately.

All panel and switch mounting hardware plus mounting bracket hardware for the optional indicator lights is provided. Panel dimensions: 3 3/4" x 5 1/4"
