Galvanic Isolator |
 Sacrificial
zincs corrode away as they protect metal thru hulls, shafts and props from
damaging electrolysis. Stray, low voltage current flowing between the AC
safety ground and DC bonding system is a principal cause of this "galvanic"

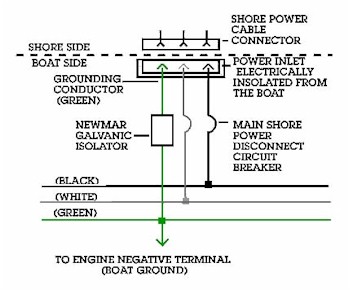

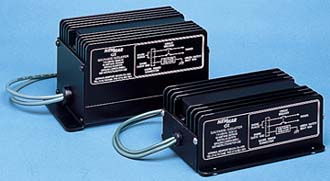

action.Installing the Galvanic Isolator between the AC safety ground and DC bonding system (see diagram), blocks a majority of the low voltage currents and corrosive action on the zincs is significantly reduced ( while the integrity of the critical safety ground path is maintained.) This means a significant savings in boat haul-out fees and zinc replacement costs. For additional safety, the units feature a large capacitor, providing a secondary low impedance path for sending AC current to ground. Two models are offered; one rated for 30 amp shore power, the other for 50 amp |
|
Model
|
Shore
power
|
Shore
Power
|
Size
- Inches
|
Size - Centimeters |
Weight
|
VAC,
Hz
|
Rating,Amps
|
H X W
X D
|
H X W
X D
|
Lb.
|
Kg.
|
|
GI-30
|
115/230, 50-60
|
30
|
2.7 X 4.8 X 7.3
|
6.9 X 12.2 X 18.5
|
2.3
|
1
|
GI-50
|
115/230, 50-60
|
50
|
4.5 X 4.7 X 8.9
|
11.4 X 11.9 X 22.6
|
3.2
|
1.5
|
|
|
