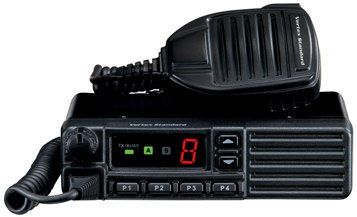

WISCO International (Vertex - Mobile Radios VX-2100)

The VX-2100 Series mobiles are designed for reliable business communications in a wide variety of applications with a wide range of operating capability provided by their high power output
(50 Watts VHF/45 Watts UHF) and wide-band coverage (134 � 174MHz / 450 � 512 MHz).

Features

8-CHANNELS
For the basic work-horse mobile, the VX-2100 provides up to 8 channels to work from.

2-TONE ENCODE/DECODE
The built-in 2-tone signaling includes 8 decode pairs and 32 encode pairs.

5-TONE SIGNALING
The built-in 5-tone signaling includes 8 decode pairs and 32 encode pairs. Functions include: Stun Revive Kill Auto TX Accessory Control (2)

EMERGENCY FEATURE
The built in emergency function can switch to an emergency channel, send the ENI, etc.

DTMF ANI
The VX-2100 mobiles come with DTMF ANI built in.

ENCRYPTION ( OPTION )
� VOICE INVERSION � ROLLING CODE

Alignment/Service Related
CT-92	FIF-8 cable to the Mobiles VX-3200/VX-4200/VX-4200/VX-2500. Used for updating firmware using the FIF-8 firmware writer.
DC Noise Filters
LF-1	Plug-In Line Filter
Microphone
MD-12A8J	MD-12A8J Desktop Microphone
MH-25A8J	Standard Microphone
MH-64A8J	MH-64A8J 16-key DTMF MICROPHONE
MH-67A8J	MH-67A8J
Power Supply
FP-1023	External Power Supply 23 Amp
Programming and Installation
CT-104A	CT-104A Interface Cable for FIF-10A
FIF-10A	FIF-10A USB Interface for PC programming. Check specific models for additional cable pigtails. Pigtails not included
T9101411	Cloning Cable
VX VPL-1	Programming cable from PC. Check specific models for additional cable pigtails
Signaling
FVP-25	Encryption Unit (Band Inversion Type) and DTMF Paging. (requires FIF-7 if installed into the VX-4000 / VX-5500 / VX-6000)
FVP-35	Plug-in Rolling Code Encryption. Requires FIF-7 if installed into the VX-4000 / VX-5500 / VX-6000. Requires VX MPI for programming
VME-100	The VME-100 is a plug-in ANI encoder capable of encoding MDC1200, GE Star or DTMF ANI per channel.
Speaker
MLS-100	External Speaker (12 Watt Peak)
MLS-200	12 W peak external weatherproof speaker.
