MODEL 1517
SentriVoice +



Industrial Voice/Page Alarming & Remote Control

INTRODUCTIONMODEL 1517

SentriVoice+ monitors alarm inputs and, upon sensing an alarm condition, automatically transmits voice messages or pages over radio or a public address system. The rugged, industrial SentriVoice+ features a fiberglass NEMA 4X case with integrated gelcel battery and battery charger/power supply. Users can respond to the alarm or page via radio by remotely controlling SentriVoice+ outputs connected to pumps, generators, lights, etc. The SentriVoice+ comes standard with 40 seconds of battery backed voice storage and Motorla two-tone paging.

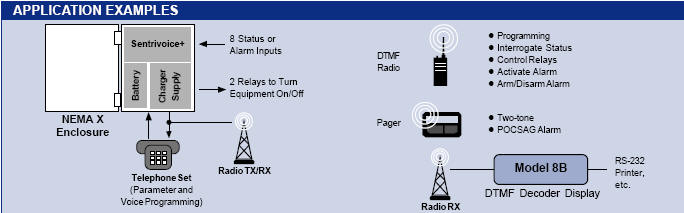

APPLICATIONS

Economical wireless alarm monitoring for remote sites, machine monitoring, process control, manufacturing, and security. Give fewer personnel more capability with automatic voice alerting and remote control via radio. Machines and industrial processes can alert or page service or security personnel automatically.

  • Economical, automatic, on-site paging

  • Notify maintenance or emergency personnel with voice messages

  • Automatic voice annunciator for public address systems

  • Monitor and report security at remote RF sites

  • Send specific text pages to alphanumeric pagers

  • Water/Wastewater system monitoring and control

  • Irrigation monitoring & control

  • Agricultural monitoring & control

  • Lift stations

  • Water tanks

  • Oil/gas tanks and pipelines

  • Poultry production

  • Cold storage monitoring

  • Construction site monitoring

OPERATION AND PROGRAMMING

  • Up to 2 voice messages per zone
  • Precede messages with two-tone paging tones, DTMF, or siren alert tones
  • Messages recorded via phone handset and can be changed remotely via radio
  • Send 35 characters of text to 3 different alphanumeric pagers for each alarm input
  • Each of the 8 alarm zones can be programmed for a different text message
  • Send a different 15 digit DTMF sequence for each of the 8 alarm inputs
  • Use Zetron Model 8B to decode 1517 DTMF broadcast
  • Radio connections are audio in, audio out, push-totalk, and COR. Transmit request allows multiple Model 1517s to share same radio
  • Program time between alerts to 99 minutes
  • Send messages up to 14 times in each alarm cycle
  • Send "ALL'S WELL" up to 8 times a day
  • Set alarm inputs for normally open, closed, momentary, or status
  • Set alarm input debounce time for noisy signals
  • Program unit ID & security mode
  • Program conventional or trunking radio interface
  • Divide voice storgae into any length message
  • Program up to 3 pager codes for each alarm zones

OPTIONS

  • Remote Control Relay (limit 2)
  • Spares Parts Kit
  • 12 AH battery
  • Multiple paging formats (Plectron-POCSAG-5/6)
  • Additional 40 seconds voice storage

FEATURES

  • Rugged NEMA 4X case
  • 7-Amp-Hour sealed, lead-acid battery
  • Integrated 2-Amp battery charger and power supply
  • Standard 40 seconds of voice storage in solid state memory
  • Optional additional 40 seconds of voice storage in solid state memory
  • Standard Motorola two-tone paging
  • Integrated wiring and radio mounting space for RNet, Radius, etc. radios
  • Automatic alarm monitoring and reporting via voice or page
  • Monitor 8 alarm zones
  • Remote control equipment via 2 control output relays
  • Easy to program via phone, radio, or RS-232 terminal mode
  • Broadcast voice, tone, or alphanumeric pages
  • Select up to 3 pager codes per alarm
  • Connect multiple SentriVoice+ to a single radio for more alarm zones

Specifications


GENERAL
Power 120 VAC, 60 Hz, 1.25-Amp
Temperature 0 to +50 degrees C
Case 15.5" x 13.4" x 6.5" NEMA 4X Fiberglass, mountable on wall
Radio Size Max 10.75" x 7.75" x 3.75"
Weight 23 lbs. without radio
Battery 12VDC 7AH with 12 AH optional
Battery Charger/ Supply 2-Amp max at 14.25V
RS-232 INTERFACE (PROGRAMMING ONLY)
Baud Rate 4800
Parity None
Bits 8
Stop Bits 1
RADIO INTERFACE
Audio Output 20mV to 2V P-P, 600 ohm
Audio Input 3V P-P max, >30K ohm minimum
Channel Busy Input (COR) 1 to 4.5V adjustable
PTT (Push to Talk) Output Relay to gnd, 300 mA max, normally open or closed
I/O SPECIFICATIONS
External Inputs 8 contact closure inputs:
Lo <0.8 volts
Hi > 2.0 volts
Protected to +/- 48 VDC
External Outputs
Relays (limit 2)
SPDT relay, 120 VAC or 28 VDC, 60
VA max
