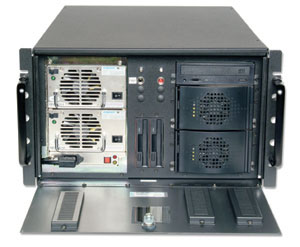

Model 2700
Messaging Gateway



The Model 2700 is a versatile, highly configurable paging terminal with a robust architecture that delivers highly reliable service. The use of industry-standard hardware and software elements allows easy system maintenance and future expansion. Model 2700

The user interface allows rapid system setup and configuration. The Model 2700 capabilities include: support for very large systems; e-mail paging; web based paging; internet networking; voicemail for every subscriber; and hot standby with synchronized databases.
The Model 2700 supports T1, E1, and analog telephony trunks.

Features

  • High reliability through dual, hot-swappable power supplies and RAID 1 mirrored, hot-swappable disk drives
  • Multiple networking and interface capabilities
  • Voice messaging option, configurable for call answer or paging notification
  • Supports up to 1,000,000 subscribers
  • Supports alphanumeric, numeric and data paging
  • Supports popular paging formats including POCSAG and 4-level FLEX�
  • Microsoft Windows� 2000 Professional operating system
  • Available in five standard configurations; analog trunks only, single and dual T1 or E1 trunks.

Specifications



GENERAL

Environmental +32� to +140�F (0� to +60�C), up to 10,000 ft. (3,000 m.) altitude, 5% to 95% relative humidity, non-condensing
Power
AC input
Dual Power Supplies
(N+1) 400W 110V/60Hz; 230V/50Hz
TNPP Capabilities Maximum ports supported - 32
Subscriber ID Range
Subscriber Capacity
1 to 9,999,999,999 (expandable)
1,000,000
Voice capacity 138 hours
Voice Disks Optional Redundant Hot Swap SCSI
TELCO INTERFACE
Digital T-1, E-1, Type II
Analog DID, DID/DOD, End-to-End
Telco Trunks/Channels 360-450 per CPU Module in custom configurations
Signaling Protocols DTMF, DP, MF-R1, MFC-R2
Trunk Concentrator Combine T1/E1 or analog trunks
Feed digits up to 18 Absorb, Insert, Translate, Phantom
