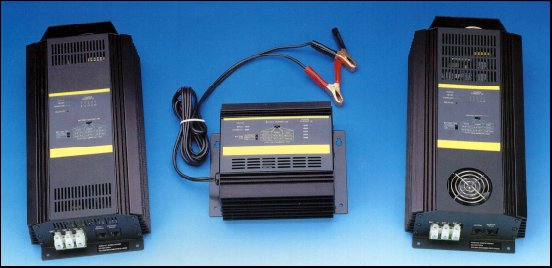

Smartcharge Battery Chargers.

MULTI-STAGE AUTOMATIC BATTERY CHARGERS -
Ideal for deep cycle marine, RV, and industrial batteries.

Special Features

Battery Temperature Switch: Adjusts charging voltage to compensate for battery temperature providing an accurage charge in any climated.

• Battery Ready and Battery Charging LED indicators: No more guessing if the battery is full charged.

• Battery Type Selector Switch: Adjusts charger output for the different charging requirements of sealed (gel) and conventional flooded (wet) batteries.

• Bar Graph Amp Meter: Displays battery charging current.

• Equalization Mode: Manually triggered charge mode reconditions battery to maximum capacity (available on SMARTCHARGE 20 & 40)

• Over-temperature, overload shutdown.

• Non-speaking feature for safe battery connection.

• Reverse polarity and short-circuit protection.

Model

SBC10

SBC20

SBC40

Output Current/

10 amps continuous duty

20 ampscontinuous duty

40 amps

Output Voltage:

Charge

All units: 13.8-14.8V DC (depending on settings)

Float

All units: 13.1-14.2V DC (depending on settings)

Equalize

SBC10 - not available

SBC20/SBC40 - 15.5V DC @ 4A max.

Input Voltage Range:

All units: 90-135V AC, 48-62Hz

Recommended for:

25Ah to 200Ah

100Ah to 400Ah

400Ah and up
