Compact VHF/UHF FM Portable Radios

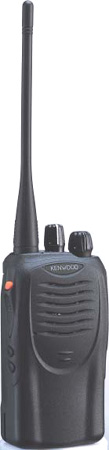

TK-2160 / TK-3160

Setting the pace with a compact, simple and reliable design, Kenwood�s TK-2160/3160 portables are the new benchmark of performance. With such features as priority scan, VOX, and MIL-STD 810 & IP54/55 weatherproofing, these units are all set to work rain or shine.

  • COMPACT DESIGNTK2160/3160
  • CONVENTIONAL FORMAT
  • PRIORITY SCAN & TALK BACK
  • FleetSync� PTT ID & SELCALL
  • FleetSync� EMERGENCY
  • VOICE SCRAMBLER
  • INTERNAL VOX/HANDS FREE READY
  • QT/DQT/DTMF/2-TONE
  • PROGRAMMABLE CALL ALERTS
  • PROGRAMMABLE FUNCTION KEYS
  • HIGH-QUALITY AUDIO
  • 8, 9 & 12 HOUR BATTERY PACKS
  • IP54/55 WATERPROOFING
  • MIL-STD 810 C, D, E & F

OUTSTANDING FEATURES

OPERATING EASE
The rotary and key controls on the TK-2160/3160 have been designed to provide the user with positive detent feedback even if carried and operated under-cover or in a pocket.

FleetSync� PTT ID, SELCALL & EMERGENCY
Utilizing Kenwood�s FleetSync� digital signalling protocol, the TK-2160/3160 has PTT ID (ANI; automatic number identification) and Selective Calling capabilities for managed dispatch operations.
For hazardous / hostile duty environments, the orange key can also be programmed for Emergency status to alert the dispatcher and/or fleet of a unit in distress.

QT/DQT/DTMF/ 2-TONE
The industry standard tone/code squelching formats QT (CTCSS) and DQT (digital) provide system access and group segregation on shared frequencies. DTMF PTT ID is included for dispatch operations or for a simple remote control application. The DTMF decode capabilities include a selective call ID, transpond with ID, "wild card" group calling and radio stun.
The TK-2160/3160 is also equipped with 2-Tone encode and decode capability for legacy paging systems and selective call use (three tone pairs, A, B, C & D tones; 288.5�3000 Hz). All selective calling formats (FleetSync�, DTMF & 2-Tone) have call alert tones and LED indications.

PROGRAMMABLE CALL ALERT TONES
The programmable call alert pattern, duration, tone and volume provide personalized and distinctive selective calling alerts.

PROGRAMMABLE FUNCTION KEYS
The three side PF Keys are programmable to any of the many functions available on the TK-2160/3160, permitting a customized fit for specific users (including the orange key).

HIGH-QUALITY AUDIO
Clear audio means confident communications. The TK-2160/3160 large speaker, full half-watt of audio output and tailored response characteristics provide optimum audio in even noisy environments.

8 TO 12-HOUR BATTERY PACKS
The KNB-25A NiCd 8-hour* pack is the economical standard for the TK-2160/3160 portables. The optional KNB-24L Lithium Ion 9-hour* pack offers the ultimate in compact, lightweight carrying comfort. For super
high- capacity talk and standby time, the KNB-26N NiMH 12-hour pack is the powerhouse of choice. *Battery life is based on 5% transmit-5% receive-90% standby duty cycles.

TOUGH & WATERPROOF
Built tough to take rough treatment in stride, these portables have passed the advanced IP54/55 and MIL-STD 810 "blowing rain" waterproof tests and meet/exceed eleven other stringent MIL-STD 810 C/D/E/F environmental standards. This proves that whatever conditions may be, the TK-2160/3160 is ready to answer the call.
