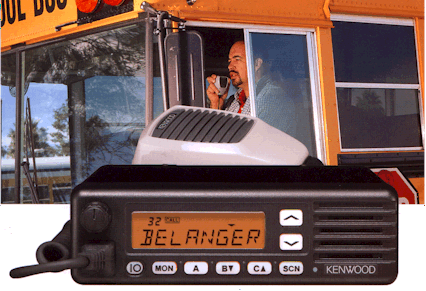

Compact VHF Low Band FM Mobile Transceiver

TK-6110

The search for absolutely reliable communications is over. Kenwood's TK-6110 mobile transceiver features a redesigned heat-sink that provides exceptional strength and heat dissipation in all operating conditions. 70 watts of  high-power output and compact dimensions for easy mounting in limited-space installations make this rugged unit the first choice for today's demanding applications.


TK6110

  • 32-CHANNEL CAPACITY
  • WIDE-BAND COVERAGE
  • 8-CHARACTER, ALPHANUMERIC DISPLAY
  • PRIORITY SCAN
  • 7 PROGRAMMABLE FUNCTION KEYS
  • MIL-STD 810 C, D & E
  • DIE-CAST CHASSIS
  • OPERATOR SELECTABLE TONE/CODE (OST)
  • FLASH MEMORY ADVANTAGE

STRENGTH & DURABILITY

LIGHTWEIGHT & COMPACT CONSTRUCTION
The newly designed aluminum die-cast heat-sink provides exceptional strength and heat dissipation to handle the unit's 70 W high-power output. And the TK-6110's compact dimensions (6-1/4 (W) x 2 (H) x 6-1/4 (D) in.) allow mounting even in tight spaces.
MIL-STD 810 C/D/E
The TK-6110 meets or exceeds tough U.S. Department of Defense MIL-STD 810 C, D & E environmental standards in several categories, in addition to passing Kenwood's own stringent tests based on technical and industrial standards.

VERSATILITY

32-CHANNEL CAPACITY
The 32-channel capacity ensures plenty of room for basic and multi-channel applications.
CHANNEL SCAN FEATURES & PRIORITY SCAN
Scan, channel add/delete, and priority channel checking are some of the parameters that can be set to accommodate any channel scanning need. Talk-back scan allows users to respond immediately to calls regardless of the pre-programmed or selected scan revert channel. Additionally, undesired channels can be deleted temporarily with the nuisance delete feature.
7 PROGRAMMABLE FUNCTION KEYS (PF KEYS)
Every key is programmable for virtually any radio feature. This allows the unit to be fully customized to fit different user needs.
BUILT-IN QT AND DQT SIGNALING
The encoder/decoder function segregates talk groups so that users only hear calls from their own group.
DTMF SIGNALING
PTT ID provides a DTMF AMI for business and industrial applications.
BUSY CHANNEL LOCKOUT
Lockout further improves channel management by preventing transmission if another talk group is already on the air.
OPERATOR SELECTABLE TONE/CODE (OST)
The OST feature provides a programmable bank of 16 user-selectable tones (QT & DQT) for accessing different repeaters. Each tone can have an assigned alpha-tag and be directly accessed by radio controls.
BUILT-IN SELECTIVE CALLING (TWO-TONE & DTMF)
Two-tone decode allows for three code pairs, each with individual paging settings. DTMF selective calling provides individual call, and over-the-air disable/enable. Both signaling types can be assigned on a per channel basis and have audio-visual call alerting.
FLASH MEMORY ADVANTAGE
Flash memory permits updates and advanced feature set upgrades and to be made electronically without ever opening the unit. This means faster upgrades and less downtime for users.

EASY USER INTERFACE

EIGHT-CHARACTER ALPHANUMERIC & ICONS
The large, front panel display provides eight alphanumeric channel aliases and non-cryptic easy-to-read operational icons. Special operational modes are also displayed providing positive visual feedback. Besides ensuring user-friendly operation on a daily basis, these features help to facilitate fast, effective training for new users.
PROGRAMMABLE TWO-COLOR LED
The two-color LED provides eight alphanumeric channel aliases and non-cryptic easy-to read operational modes are also displayed providing positive visual feedback. Besides ensuring user-friendly operation on  a daily basis, these features help to facilitate fast, effective training for new users.

SECURITY

ENCRYPTION CONTROL
Secure voice communications represent an attractive choice for law enforcement use. An internal port permits the addition of optional modules to provide voice scrambling from low-level inversion to high-level
encryption. The radio's programming provides both automatic and manual control for clear and coded modes.
DIGITAL ANI AND EMERGENCY CONTROL
Unit ID and emergency ANI for computer-aided dispatch operations can be added with optional modules. Any PF key can be programmed as an Emergency key to trigger an ANI option. The emergency call feature switches the radio automatically to a pre-programmed channel for dispatcher alert.
PASSWORD-PROTECTED PROGRAMMING AND CLONING
Cloning enables the duplication of radios in the field via a simple interface cable no need for a PC or special test jig. For users who do not require this capability, a secure password can be programmed to prevent the cloning of a lost or stolen radio. Additionally, all radios can have the programming password protected to prevent unauthorized extraction and duplication.
DEAD BEAT DISABLE (DBD)
DTMF Dead Beat Disable permits over-the-air immobilization of either transmit or transmit/receive audio  to prevent the unauthorized use of stolen or compromised units.
EMBEDDED MESSAGE
Within the flash memory of the radio, an electronic message can be stored containing owner identification, property 1.D. numbers, user and department names, service records, etc.. A radio can thus be electronically identified even if external labels, markings or factory serial numbers have been removed.
PC PROGRAMMING AND TUNING
To save both time and expense, radio parameter programming and tuning can be performed via the mic connector using a PC. There is no need to even open the radio. (Optional software and cable required.)

OTHER FEATURES

  • HOME CHANNEL
  • HORN ALERT
  • TALK AROUND TIME OUT TIMER (TOT)
  • TIMED POWER OFF
  • IGNITION SENSE
  • NOISE BLANKER
  • MINIMUM VOLUME
  • DIRECT CHANNEL SELECT
  • LCD BACKLIGHT ON/OFF
  • SQUELCH LEVEL
