 Desktop
Control

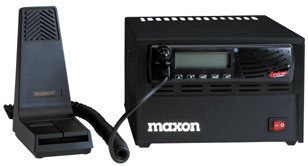

Housed in a steel shroud, these plug-and-play base stations are
created from the durable Maxon Enduro� SM-6000 mobile.
Offering long range
communication from 40 Watts of power, and simple LTR or conventional
operation, the SB-6000 Series will keep your crew productive
throughout the work day.
Features:
Plug-and-play setup:
Fully assembled for quick installation;
easily connects to Tone / DC remote and consoles.
Data ready:
Dedicated data-only channel operation plus
15-pin connector for Mobile Data Terminals (MDT), telemetry and
SCADA applications.
Up to 40 Watts output power.
Up to 200 System:
VHF LTR: 25 Groups per System
VHF Conv:14 Channels per System
UHF LTR: 32 Groups per System
UHF Conv:16 Channels per System
Data connector
pin-out
|
 |
1- BUSY
2- PROG I/D
3-sPKR HI
4- GROUND
5- MIC HI
6- RSSI
7- IGN SENSE
8- AUDIO TO DTMF IN |
9- DCD
10- FLAT AUDIO
11- DATA
12- PTT. RTS
13- SPKR LO
14- BUF ASIC VOL OUT
15- MIC LO |
Additional
Features
- 5 or 40 Watts.
- Dedicated data-only channel.
- Flash programming:
- ANI (Automatic Number
Identification).
- CTCSS / DCS Tone Signaling.
- 2-Tone Decode (conventional).
- Flas programming through front
microphone jack.
- Multiple scan functions,
including manual Group, auto group (LTR Trunked); Group,
priority Tx, priority only Tx, priority lookback, and talk-back
(conventional).
- Public Address mode.
- Talk-around mode.
- Programmable home System /
Group.
- Programmable wide or narrow
channel spacing.
- Busy System queuing.
- 9-Character, Backlit LCD with
Icons.
- Backlit function control
buttons.
- Time-out-timer.
- Programmable volume settings.
- External speaker jack.
- Approved to MIL-STD 810F.
|
