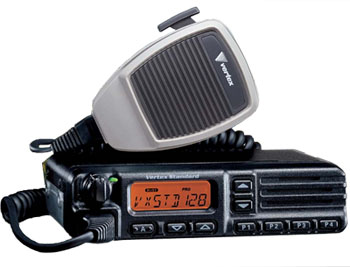

VX-2500 Series VHF / UHF - Mobile Radios

FEATURES

• POWER OUTPUT 25 W.
• 128 CHANNEL (10 GROUPS) CAPACITY.
• INVERTIBLE ALPHA NUMERIC DISPLAY. (14 SEGMENTS x 8 DIGITS).
• RUGGED DIE-CAST CONSTRUCTION.
• CTCSS ENCODER/ DECODER.
• DUAL 2-TONE DECODING.
• DCS ENCODER/ DECODER.
• DTMF ANI ENCODER.
• DTMF ANI ID DISPLAY.
• DTMF PAGING.
• VERSATILE SCANNING.
• AUDIO COMPANDER INCLUDED.
• EMERGENCY FUNCTION.
• ENCRYPTION (OPTIONAL - FVP-25).
• FRONT MOUNTED SPEAKER�.
• ARTS FUNCTIONS.
• TOT, BCLO, BTLO FUNCTIONS.
• MIL SPEC RATED (MIL 810 C, D and E).
• 9 PROGRAMMABLE SOFT KEYS.
• PROGRAMMABLE ALERT TONES.
• DB9 ACCESSORY CONNECTOR.
• PC PROGRAMMABLE.

Alpha-numeric Display (14 Segments x 8 Digits)
The 8-digit Alpha-numeric display allows quick channel identification by the user, and is easy to read from a wide range of viewing angles.

CTCSS/DCS
Sub-audible (CTCSS) 50-tone Encoder and Decoder circuits are built into every For  VX-2500, ensuring compatibility with modern repeater requirements. applications requiring Digital Coded Squelch signaling, full-featured DCS Encoder and Decoder circuits provide leading-edge protection from false decoding. Any  combination of CTCSS and DCS will be available on the same channel.

DUAL 2-TONE Decoding
For applications where a mobile may be receiving calls from more than one dispatcher on a particular channel, the VX-2500 includes a built-in Dual Two-Tone Decoder circuit.

DTMF ANI Encoder / ID Display
Automatic Number Identification (ANI) via an automatic DTMF Encoder is also provided among the VX-2500�s versatile signaling capabilities.

DTMF Paging
DTMF Paging function is good for dispatch or network operations.

Versatile Scanning
A wide range of set-up options are available during configuration of the VX-2500, to ensure compatibility with the operating requirements of your system�s users.

Audio Compander Included
For narrow-band channel applications, the built-in Audio Companding system compresses the voice waveform during transmission, and expands it during reception, allowing full-sounding audio despite the restricted transmission bandwidth.

Encryption (Optional FVP-25 required)
For applications requiring secure communications, the optional FVP-25 Paging/ Encryption Unit provides scrambling and descrambling functions.

Emergency Mode
When activated, the "Emergency" feature sends out the DTMF ANI, and cycles between transmit and receive, to serve as an emergency beacon to alert the dispatcher as to the need for immediate aid.

ARTS� Feature
The Auto-Range Transponder System, a Vertex Standard exclusive, alerts the operator TM -equipped station (for example, a hand-held unit) moves out of when another ARTS communication range. You can then advise the other user to move to a better location.

TOT, BCLO, BTLO Features
Among the most useful protection features of the VX-2500 are the transmitter Time-Out Timer (TOT), Busy Channel Lock-Out (BCLO), and Busy Tone Lock-Out (BTLO), to ensure efficient network performance at all times.

Programmable Front Panel Keys
Custom assignment of important functions to front panel keys is available at the time of  programming, to provide the most ergonomically-friendly transceiver available today. Programmable Alert Tones Among the useful set-up options for the VX-2500 is the capability to customize the "Alert" tones generated from the transceiver, for ease of recognition by the user.

Rugged, Die-cast Construction
The VX-2500�s circuitry is housed within a die-cast aluminum enclosure, which doubles as a heat sink. This extraordinarily durable construction ensures many years of reliable operation, even in high-vibration installations

MIL-Spec Rated (MIL 810 C/D/E)
The ultra-rugged design of the VX-2500 Series enables it to be fully compliant with the exacting specifications of MIL 810 C, D, and E, pursuant to the test procedures documented below.

Accessories and Options
