WISCO International (KGP2A/KGP2B)

KGP-2A / KGP-2B

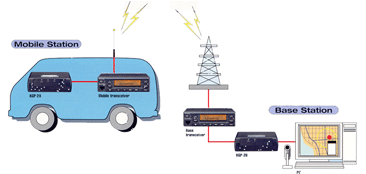

The KGP-2A GPS receiver-modem unit and KGP-2B GPS controller-modem unit from Kenwood offer a cost-effective way to implement a GPS AVL (Global Positioning System - Automatic Vehicle Location) solution* into any two-way system. AVL offers efficient dispatch management of taxi, delivery and service vehicles, plus enhanced security with advanced monitoring and control capabilities.

MOBILE STATION

Compact Lightweight Design
Measuring just 5.51 x 1.81 x 3.94 inches (W x H x 0) and weighing 1.01 pounds, the KGP-2A can be easily installed in any vehicle.

MIL-STD Environmental Standards
Compliance with MIL-STD 810 C/D/E environmental standards for resistance to dust, vibration and shock ensures stable performance even in demanding conditions.

DSP Modem
The receiver features a modem DSP-type modem (Digital Signal Processor) capable of 1200/2400 bps data communications.

LED Status Indicators
LEDs provide a Quick troubleshooting indicator to confirm DC power, data communications with the connected mobile radio or if a GPS signal is being received.

Multi-purpose Programmable I/O's
Each KGP-2A has sixteen programmable I/O's for either an analog "input" or output" [available at external connectors ACC-2 (DB-9) & ACC-3 (DB-15)].
The inputs are useful for vehicular sensors, switches, contacts, etc. and generate a report to the
KGP-2B base unit each time the status changes*. The outputs can be used to trigger external relays and controls*.
A KGP-2B base unit can be commanded by a control/base station computer running a KGP-2A/2B AVL dispatcher application to activate/deactivate KGP-2A fleet unit outputs and/or poll current input/output status.

Flash Memory
Flash memory permits uploading KGP-2A/2B unit firmware upgrades with a computer.

Control
The KGP-2A/2B air protocol commands permit, a KGP-2B base unit to request any KGP-2A fleet unit to send any currently stored data or mobile station settings AVL mapping I dispatch CAD software developers are provided with these commands and all protocol information to utilize in their products.

BASE STATION

Compact Lightweight Design
Measuring just 5.51 x 1.81 x 3.94 inches (W x H x D) and weighing 0.93 pounds, the KGP-2B can be easily installed out of the way base installation.

MIL-STD Environmental Standards
Compliance with MIL-STD 810 C/D/E environmental standards for resistance to dust, vibration and shock ensures stable performance even in demanding conditions.

DSP Modem
The receiver features a modern DSP-type modem (Digital Signal Processor) capable of 1200/2400 bps data communications.

LED Status Indicators
LEDs provide a Quick troubleshooting indicator to confirm DC power, data communications with the connected mobile radio.

Flash Memory
Flash memory permits uploading KGP-2A/2B unit firmware upgrades with a computer.
